Double Wire Loop Binding and Punching Machine for Wall Calendar
Ningbo Creative has a broad range of products, including Double Wire Loop Binding and Punching Machine for Wall Calendar, Spiral Wire punching and binding machine, high speed punching mahcine, semi-automatic binding machine,fully-automatic binding machine. As a Chinese professional manufacture,we successfully exported to many countries and regions with customers throughout Europe,Oceania,Asia, Africa North America, South America, etc.
Send Inquiry
Product Description

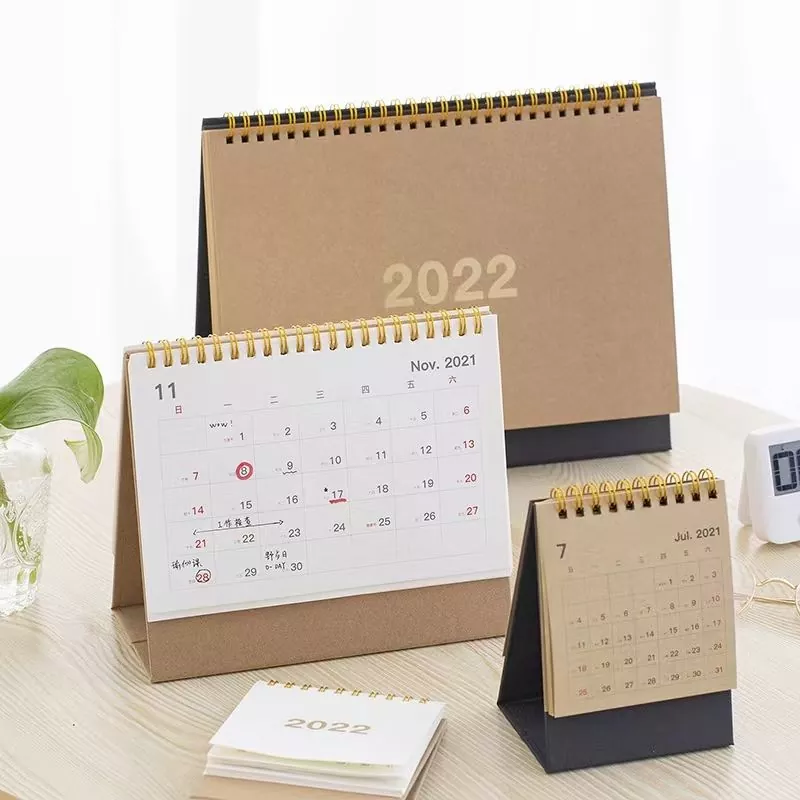

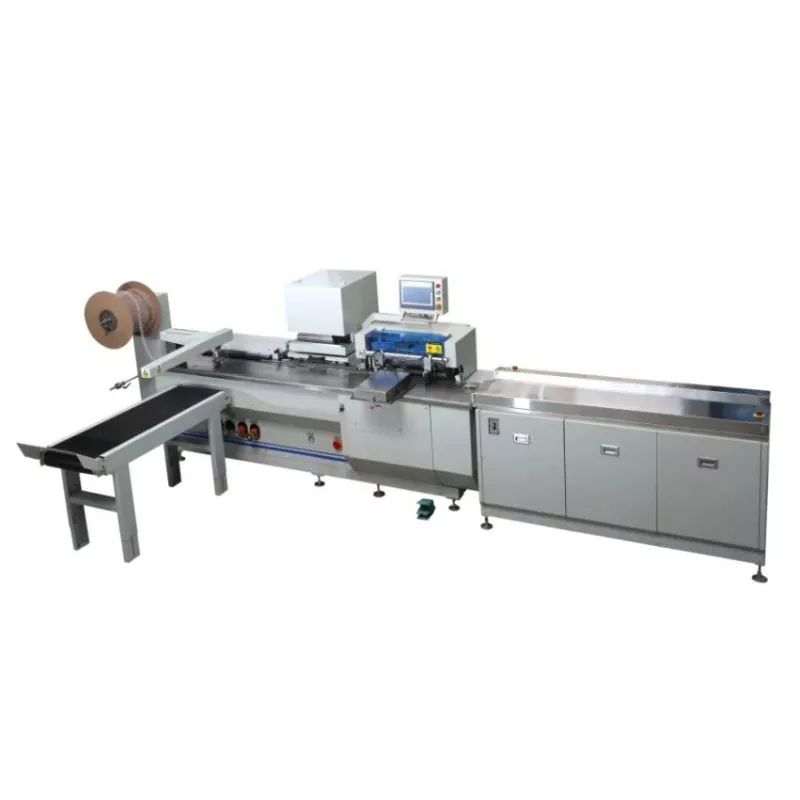

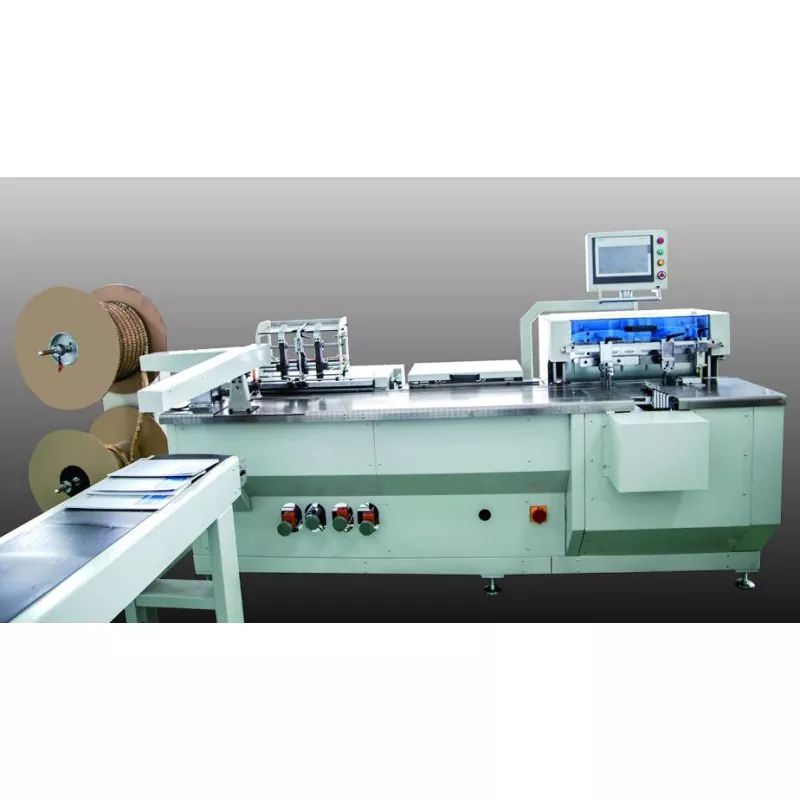

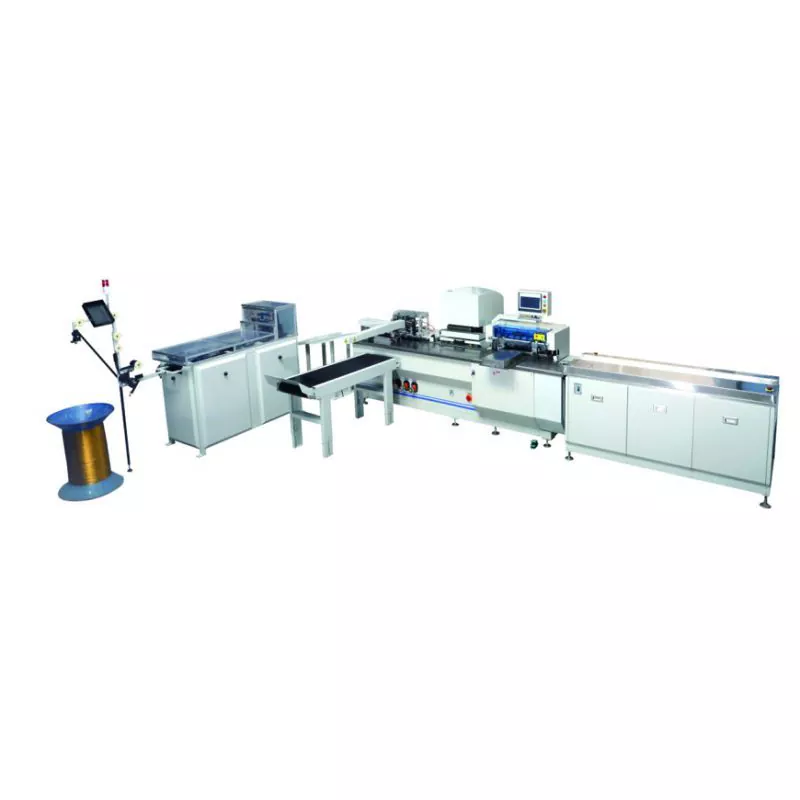

Double Wire Loop Binding and Punching Machine for Wall Calendar is a full automatic punching and binding machine which is widely used for closing double wire loop notebooks, desk calendar and wall calendar etc. All the machines meet CE standards in our company.
We also have many patents for Double Wire Loop Binding and Punching Machine . It’s adopted advanced PLC control system, the display screen can set up the working datas, and show the working status of the machine real-timely.
It can bind from 1/4 to 3/4 size within 1500 books/hour. The machine supplies punching, aligning, binding and collection functions for mass production calendars and books. It increases the production efficiency and lowers the cost remarkably. The max binding size is 580mm for wall calendar and the min binding size is 70mm for A7 pocket notebooks. The max binding thickness is 16mm and the papers could be seperated for 5 layers to make sure quality of the punching. The punching pins are made by harden alloysteel and coated in Tin. Many shapes of punching moudles for your choice. We provide customized services for making special products.
We hope to supply good quality and excellecnt service to our customers.
Specification of the size:
|
Size |
Pitch |
Wire Dia(mm) |
BindingThickness(mm) |
Hole(mm) |
|
1/4 |
3:1 |
Ф6.4 |
3.5 |
4x4 |
|
5/16 |
3:1 |
Ф7.9 |
5 |
4x4 |
|
3/8 |
3:1 |
Ф9.5 |
6.5 |
4x4 |
|
7/16 |
3:1 |
Ф11.1 |
8.5 |
4.5x4.5 |
|
1/2 |
3:1 |
Ф12.7 |
10 |
4.5x4.5 |
|
9/16 |
3:1 |
Ф14.3 |
11.5 |
4.5x4.5 |
|
5/8 |
2:1 |
Ф15.9 |
13 |
5x5 |
|
3/4 |
2:1 |
Ф19.1 |
16 |
5x5 |
Technical Data
|
|
580 |
580S |
|
Feature |
Punching,aligning.closing 3stations |
Feeding,punching, aligning, closing 4 stations |
|
Application |
Mid-production, easy to change size |
Mass-production,high efficiency |
|
Binding range |
580mm*800mm |
580mm*360mm 580mm*800mm |
|
Ring size |
1/4--3/4 |
1/4--3/4 |
|
Speed |
Up to 1100 books/h |
Up to 1500 books/h |
|
Dimension |
4mx1.3mx1.6m |
6mx1.3mx1.6m |
|
Weight |
1700Kg |
2200Kg |
|
Power |
3ph,380V 3ph,380V |
