Ningbo Creative is located in Ningbo,Zhejiang,China, dedicated to supply excellent sevice of post-print loose leaf punching and binding service for customers around the world.Automatic Twin Loop Wire Closing and Punching Machine for Desk Calendar is a welcomed machinery for printing and books factory.

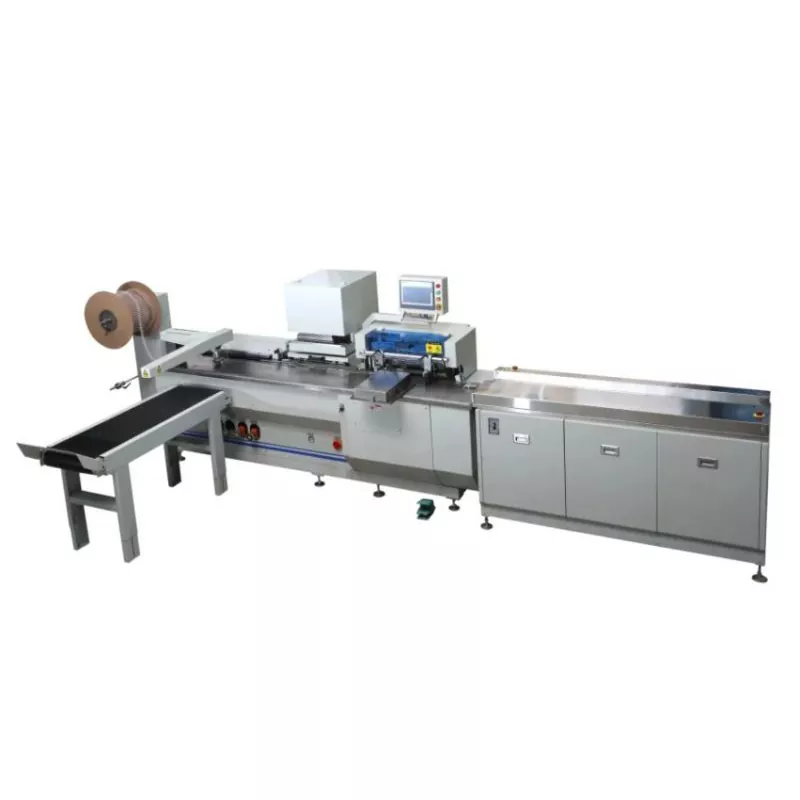

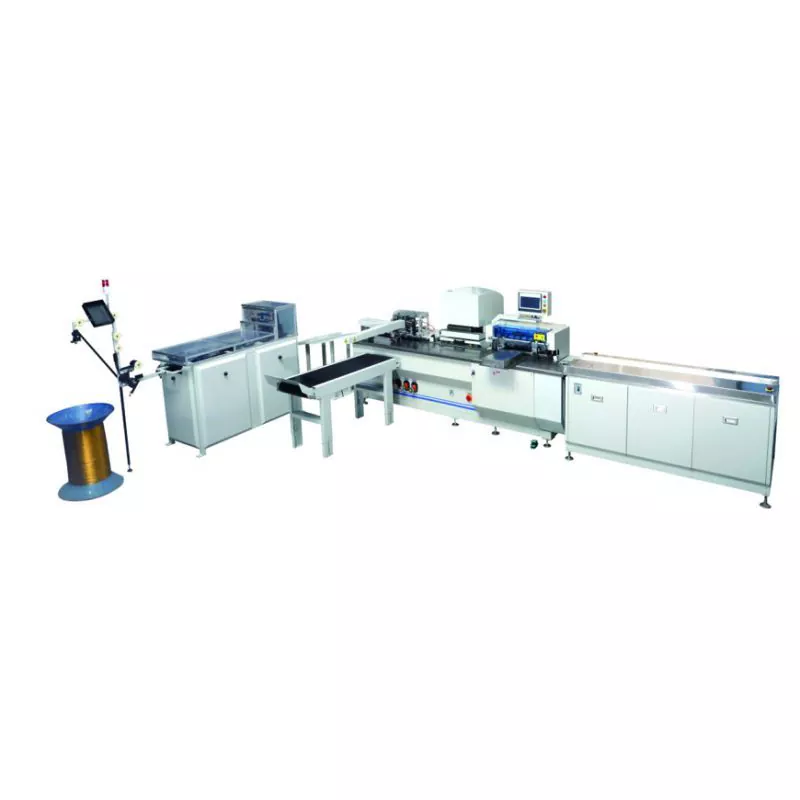

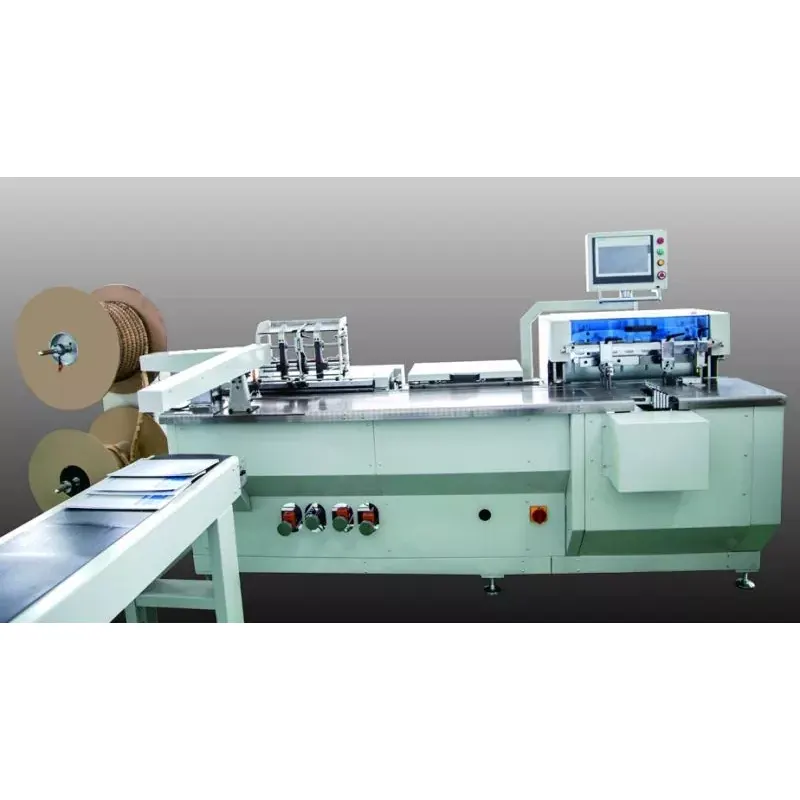

Automatic Twin Loop Wire Closing and Punching Machine for Desk Calendar is suitable for loose leaf products binding with double wire. It designs paper separation, punching, binding and collection.Calendar hanger inserting device is the optional choice for customer·
Automatic Twin Loop Wire Closing and Punching Machine for Desk Calendar it’s applied stable PLC for main control system to set up the datas. Automatic error alarm be found in the screen.The operator could find error quickly to save time. Multi languages interface design according to customer's requirement.Most electrical equipments are uesed famous brand and your could buy them from your local market.
All the machines got CE certificates in our company. Our technical team also has many patents for Automatic Twin Loop Wire Closing and Punching Machine for Desk Calendar . It can improve market competitiveness tograin trust from customer.
Automatic Twin Loop Wire Closing and Punching Machine for Wall Calendar and notebooks are the good option for customer. It’s applied widely for the many series products from A7 size notebook to special-shaped book, from desk calendar to special-design calendar with hook.
We hope to build long term business relations with all world customers.
Size |
Pitch |
Wire Dia(mm) |
BindingThickness(mm) |
Hole(mm) |
1/4 |
3:1 |
Ф6.4 |
3.5 |
4x4 |
5/16 |
3:1 |
Ф7.9 |
5 |
4x4 |
3/8 |
3:1 |
Ф9.5 |
6.5 |
4x4 |
7/16 |
3:1 |
Ф11.1 |
8.5 |
4.5x4.5 |
1/2 |
3:1 |
Ф12.7 |
10 |
4.5x4.5 |
9/16 |
3:1 |
Ф14.3 |
11.5 |
4.5x4.5 |
5/8 |
2:1 |
Ф15.9 |
13 |
5x5 |
3/4 |
2:1 |
Ф19.1 |
16 |
5x5 |
|
580 |
580S |
Feature |
Punching,aligning.closing 3stations |
Feeding,punching, aligning, closing 4 stations |
Application |
Mid-production, easy to change size |
Mass-production,high efficiency |
Binding range |
580mm*800mm |
580mm*360mm 580mm*800mm |
Ring size |
1/4--3/4 |
1/4--3/4 |
Speed |
Up to 1100 books/h |
Up to 1500 books/h |
Dimension |
4mx1.3mx1.6m |
6mx1.3mx1.6m |
Weight |
1700Kg |
2200Kg |
Power |
3ph,380V 3ph,380V |
