Ningbo Creative is specializing in the production of binding and punching equipments. Spiral Wire Binding Machine for NoteBook with Hook is a good choice for binding notebooks ,exercise books and sketch book.

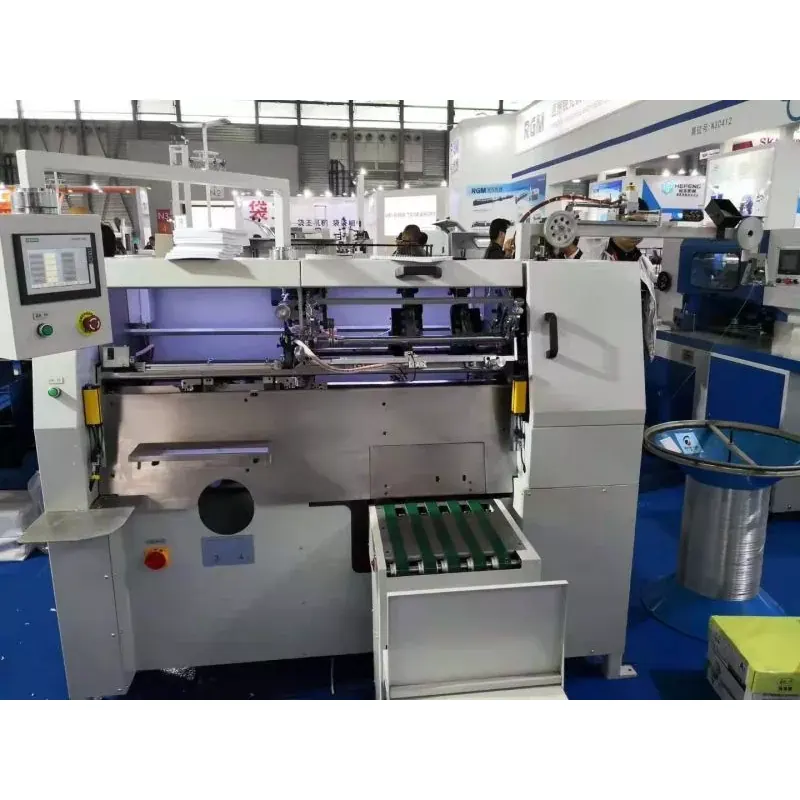

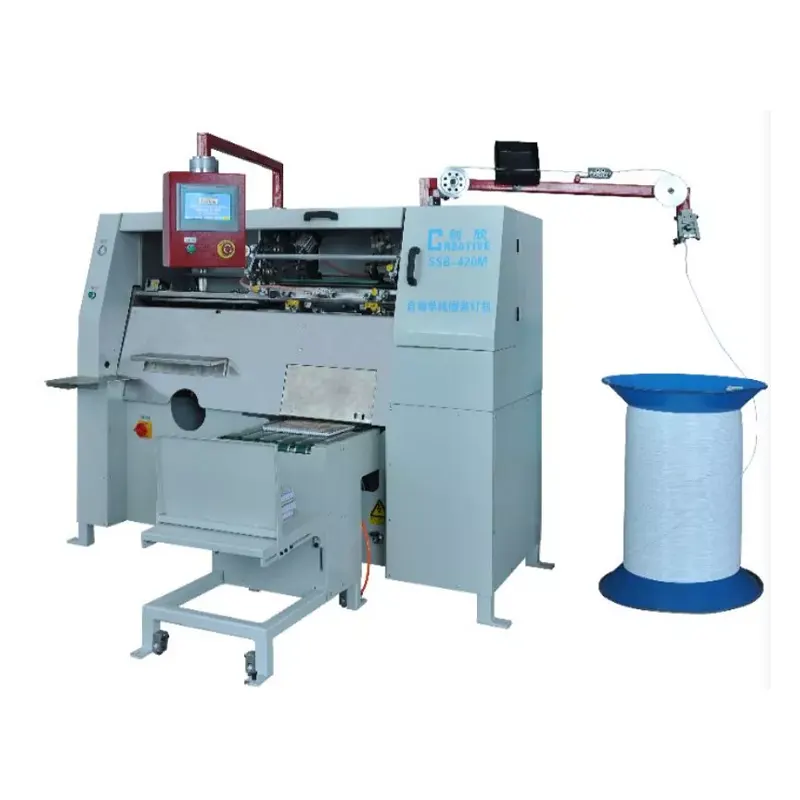

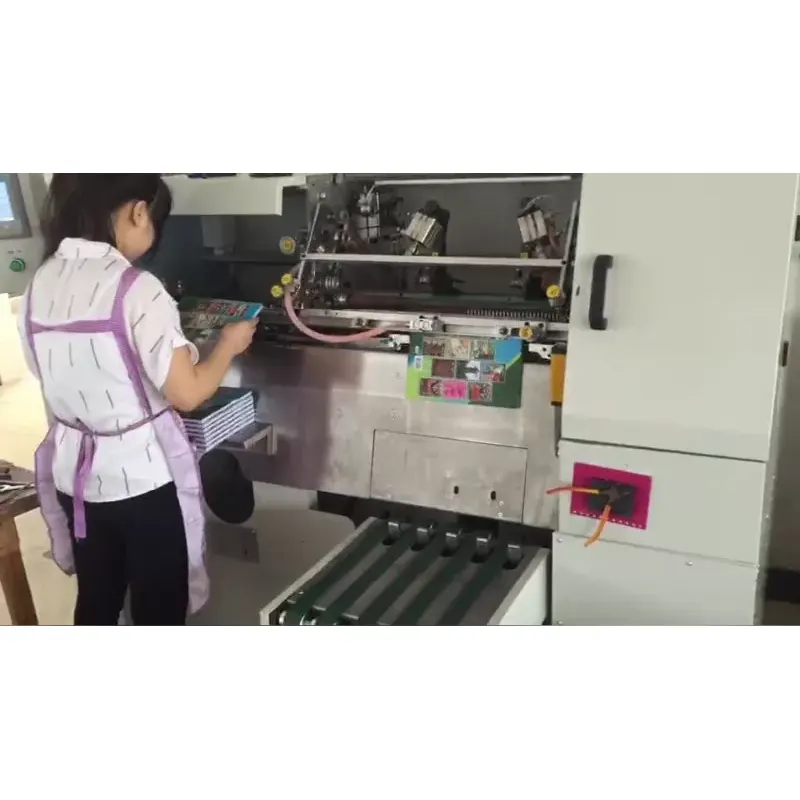

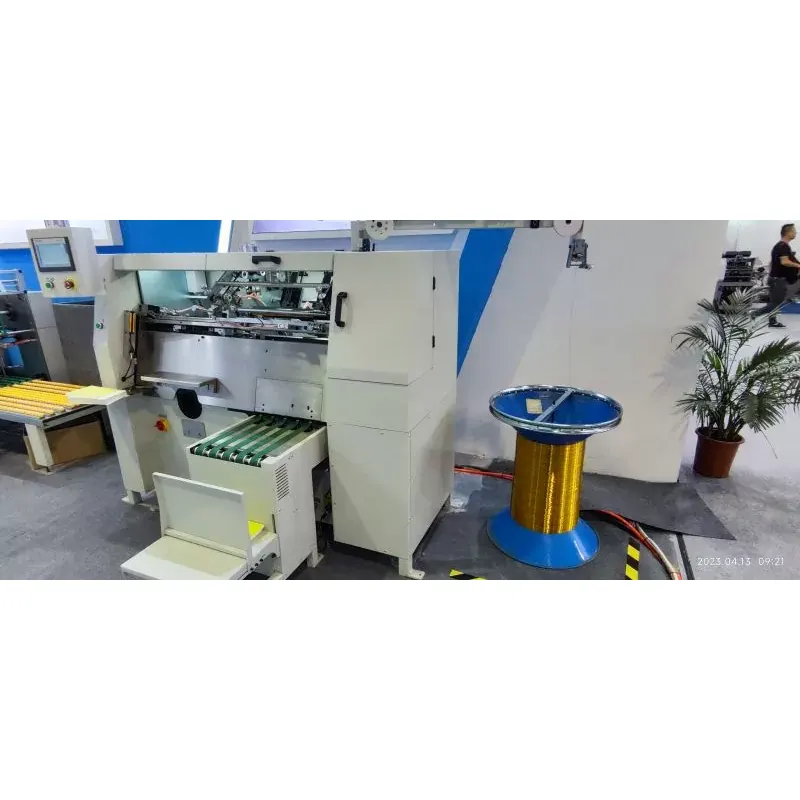

Spiral Wire Binding Machine for NoteBook with Hook is a used for nylon coated wire formed into a spiral and it automatically cut by the machine and then bound into notebook, and the ends are bent by G-hook. Spiral Wire Binding Machine for NoteBook with Hook is speed is up to 1500 books/hour. Spiral forming and book binding It’s completed synchronously with spiral forming and binding. After the book is bound, notebook will be automatically dropped to the belt, and the book will be collected automatically. The operator only needs to load the books by manual.
This machine is widely used for binding notebooks, exercise books, wall calendars, desk calendars and other loose-leaf books. It can automatically form, automatically cut, automatically loop, automatically close, automatically drop books, and automatically collect books. It is ideal for high-speed looping machine.
According to different uses, it can be divided into industrial binding machines which are often used in printing and stationary factories.

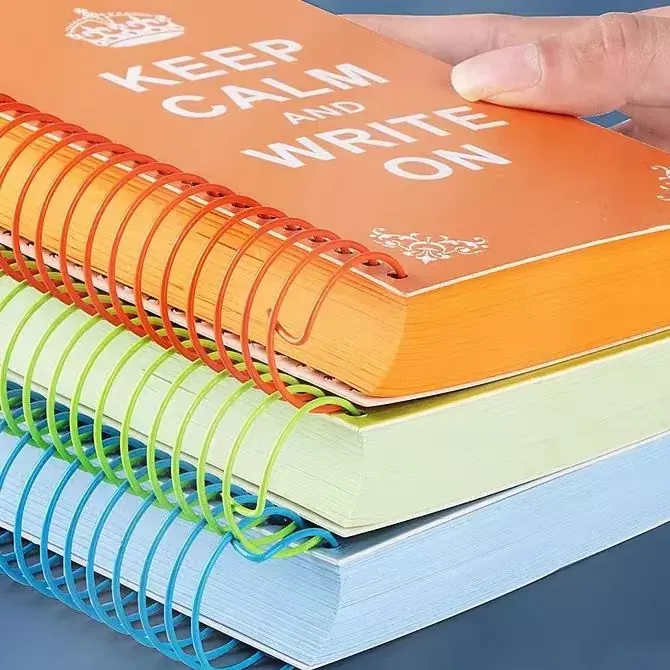

Spiral Wire Binding Machine for NoteBook with Hook is a good choice for binding notebooks ,exercise books and sketch book. It’s applied widely for the many series products from A7 size notebook to special-shaped bookwith G-type.
We hope to build long term business relations with all world customers.
Diameter(mm) |
Line Diameter (mm) |
Aperture(mm) |
Binding thickness (mm) |
8 |
0.7-0.8 |
Ø3.0 |
5 |
10 |
0.7-0.8 |
Ø3.0 |
7 |
12 |
0.8-0.9 |
Ø3.5 |
9 |
14 |
1.0-1.1 |
Ø4.0 |
11 |
16 |
1.0-1.1 |
Ø4.0 |
12 |
18 |
1.0-1.1 |
Ø4.0 |
14 |
20 |
1.1-1.2 |
Ø4.0 |
15 |
22 |
1.1-1.2 |
Ø5.0 |
17 |
25 |
1.1-1.2 |
Ø5.0 |
20 |
28 |
1.2-1.3 |
Ø5.0 |
23 |
32 |
1.2-1.4 |
Ø5.0 |
26 |
Speed |
600-1200books/hour |
Air Pressure |
5~8 Kgf |
Wire Diamater |
8-32mm |
Binding size |
75mm-420mm |
Power |
1PH220V 50/60HZ (other voltage on request) |
Size |
1900mmx1500mx1600mm |
Net weight |
620Kg |
