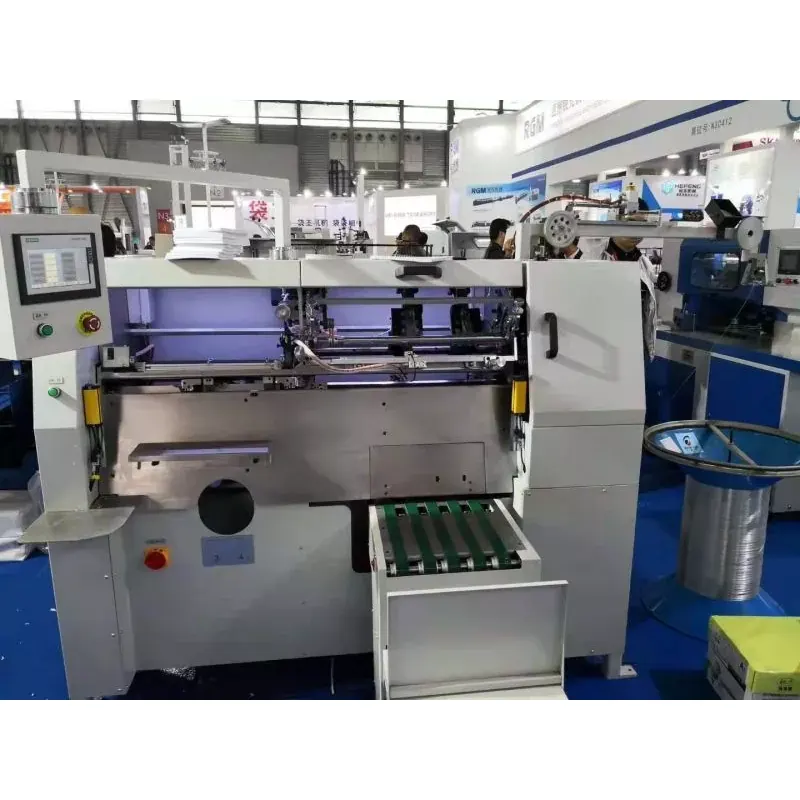

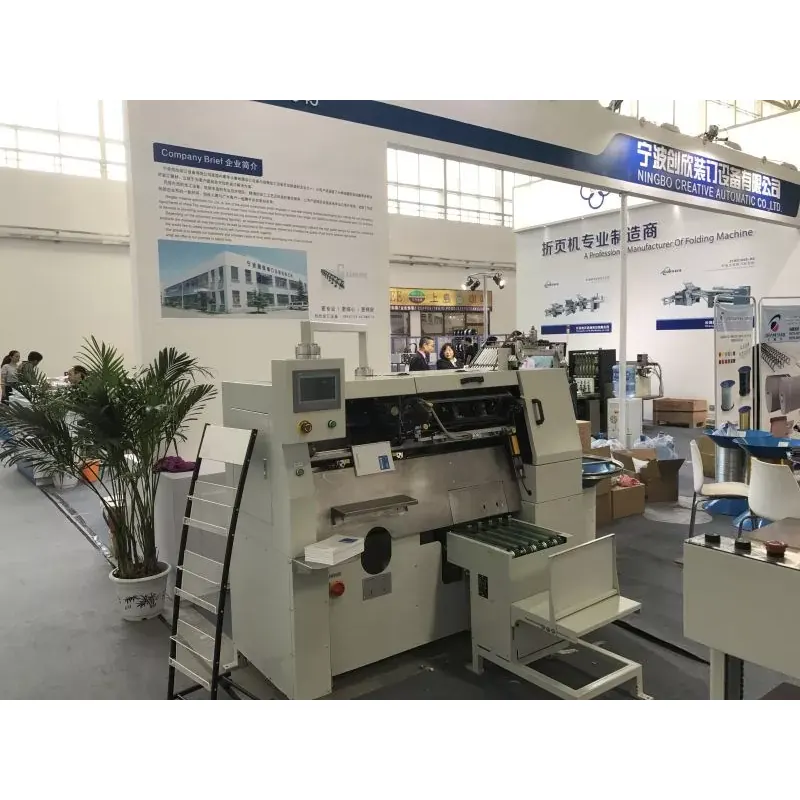

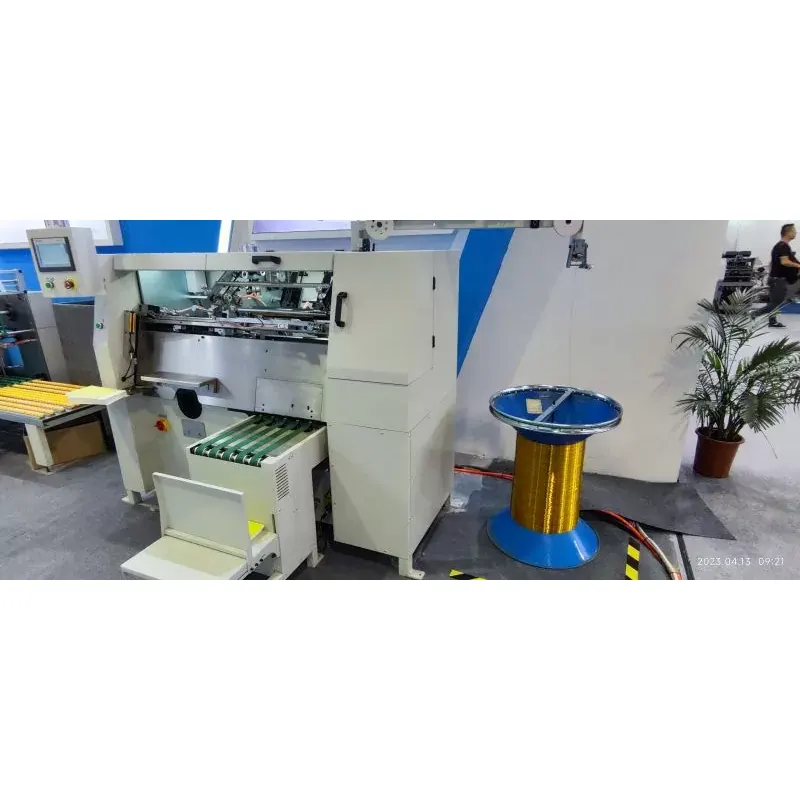

Spiral Wire Binding Machine for Book with Hook

Spiral Wire Binding Machine for Book with Hook is well created by Ningbo Creative team who are focus on developing single wire binding machine. The machine could make G-hook to avoid scratches hands when children use notebooks.

Send Inquiry

Product Description

Spiral Wire Binding Machine for Book with Hook is widely used in all kinds of notebooks, exercise book and loose-leaf etc. It’s inline machine which could be wire forming spiral, auto book cluster, auto close up, auto close up, auto book drop and auto book collection. It’s a perfect hish speed spiral binding machine for our clients.

Spiral Wire Binding Machine for Book with Hook has the following advantages:

  1. Forming different wires to spiral and binding onto the book at the same time. Through mould and tooth pitch can run different specification requirements.
  2. Book binding and spiral forming finished at the same time, convenience and efficiency.
  3. After book binding complete both ends can cut off and close up automatically Books auto drop onto the collection tank after binding complete.
  4. Suitable for binding the books which the cover is bigger than inner sheet.

Since its establishment, Spiral Wire Binding Machine for Book with Hook has been exported to more than 70 countries and regions in the world.We can provide customized services to customers in different size wire and different pinth. We confirm Spiral Wire Binding Machine for Book with Hook will make you satisfy on efficiency and quality.

Specification

Diameter(mm)

Line Diameter (mm)

Aperture(mm)

Binding thickness (mm)

8

0.7-0.8

Ø3.0

5

10

0.7-0.8

Ø3.0

7

12

0.8-0.9

Ø3.5

9

14

1.0-1.1

Ø4.0

11

16

1.0-1.1

Ø4.0

12

18

1.0-1.1

Ø4.0

14

20

1.1-1.2

Ø4.0

15

22

1.1-1.2

Ø5.0

17

25

1.1-1.2

Ø5.0

20

28

1.2-1.3

Ø5.0

23

32

1.2-1.4

Ø5.0

26

Technical Data

Speed

600-1200books/hour

Air Pressure

5~8 Kgf

Wire Diamater

8-32mm

Binding size

75mm-420mm

Power

1PH220V 50/60HZ (other voltage on request)

Size

1900mmx1500mx1600mm

Net weight

620Kg
