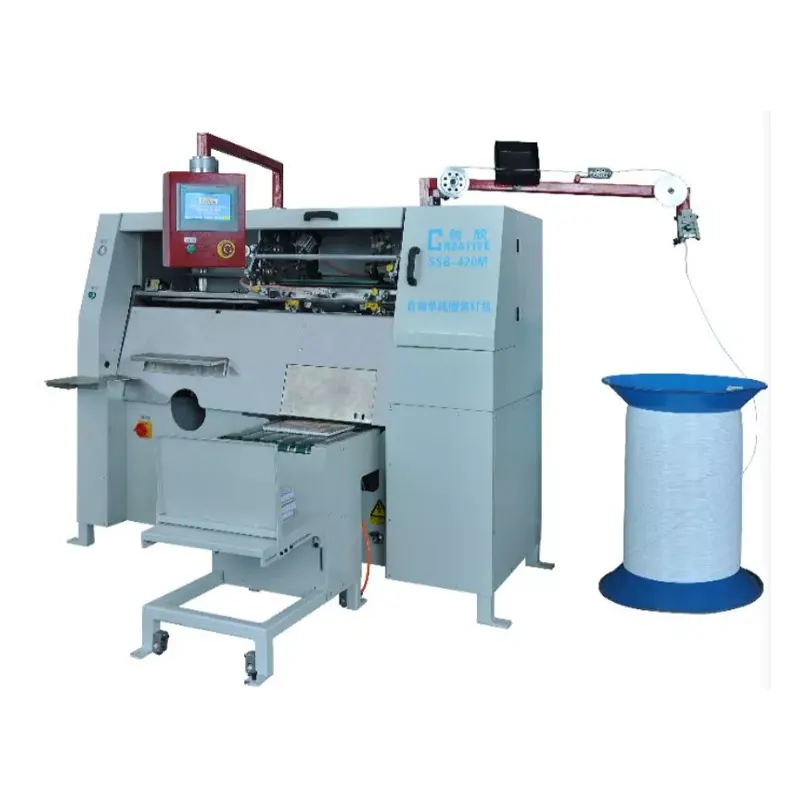

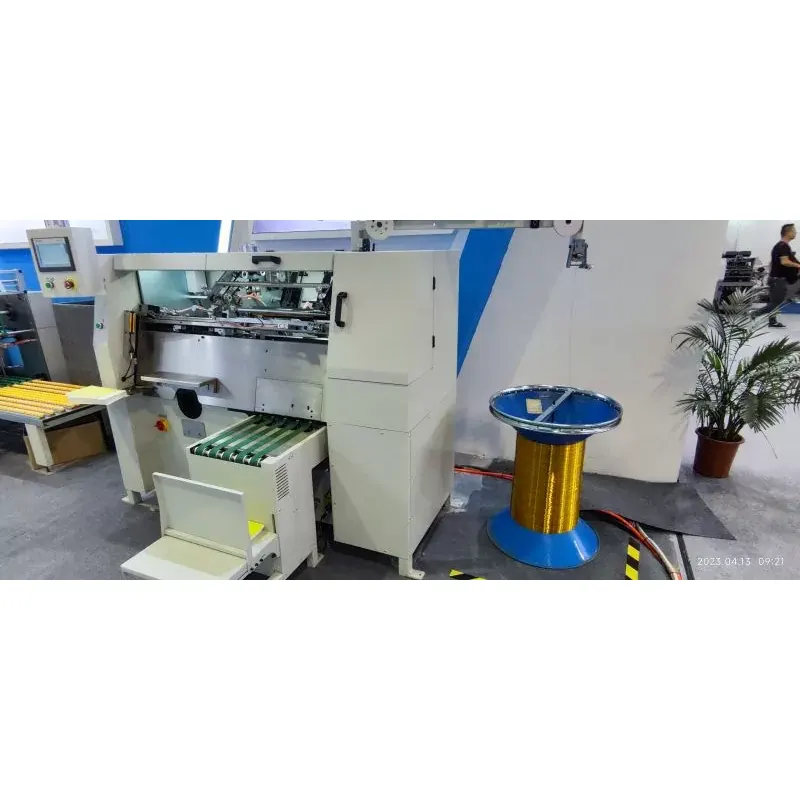

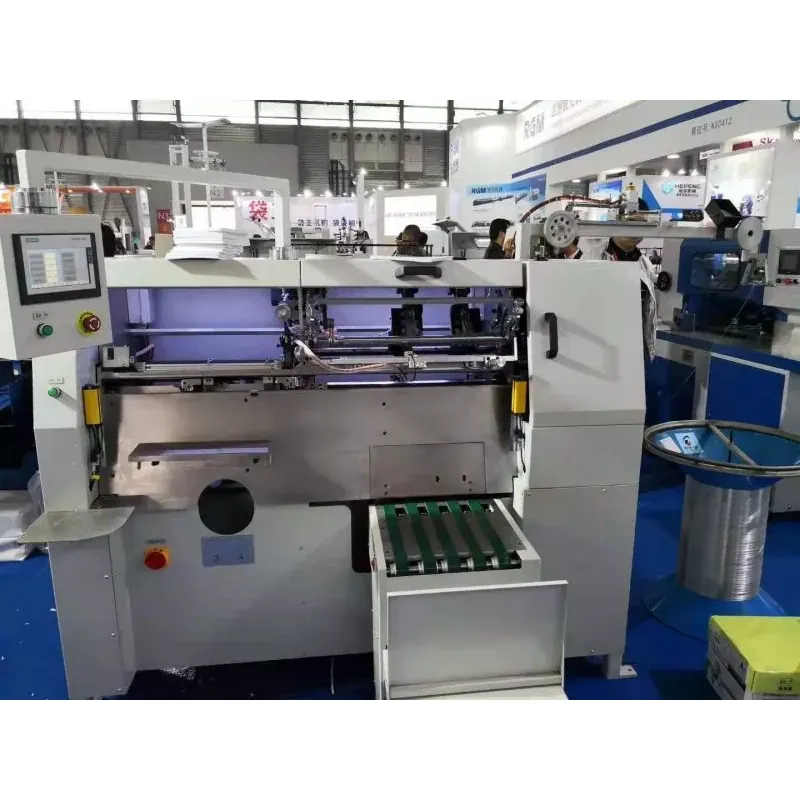

Spiral Wire Forming and Binding Machine for Exercise Book with Hook
Ningbo CAREATIVE Automatic Co., Ltd. Was set in 2008 with a registered capital of 5 million yuan. Spiral Wire Forming and Binding Machine for Exercise Book with Hook is the hot sale single wire binding machine for customer. We have a strong technical force to help clients solve binding and punching problems.
Send Inquiry
Product Description
Spiral Wire Forming and Binding Machine for Exercise Book with Hook is used for binding notebook, exercise book, loose-leaf etc. It can automatic wire forming spiral, automatic book cluster, automatic close up, automatic book drop and automatic book collection.It increases the production and lowers the cost remarkably.
The advantages of the Spiral Wire Forming and Binding Machine for Exercise Book with Hook are: easy operation, fast speed, low cost of consumables.
The features of Spiral Wire Forming and Binding Machine for Exercise Book with Hook as follow:
- The operator changes the mold is fast and easy.
- By changing molds,various loops diameters can be processed.
- Automatic wire forming spiral, automatic book cluster, automatic close up, automatic book drop and automatic book collection.
- Suitable for binding the books which the cover is bigger than inner sheet.
Since its establishment, Spiral Wire Forming and Binding Machine for Exercise Book with Hook has been exported to more than 70 countries and regions in the world. In addition, the company focuses on the spirit of innovation, so it has won trust from customers at home and abroad. Hope to build long term business relationship with your.
Specification
|
Diameter(mm) |
Line Diameter (mm) |
Aperture(mm) |
Binding thickness (mm) |
|
8 |
0.7-0.8 |
Ø3.0 |
5 |
|
10 |
0.7-0.8 |
Ø3.0 |
7 |
|
12 |
0.8-0.9 |
Ø3.5 |
9 |
|
14 |
1.0-1.1 |
Ø4.0 |
11 |
|
16 |
1.0-1.1 |
Ø4.0 |
12 |
|
18 |
1.0-1.1 |
Ø4.0 |
14 |
|
20 |
1.1-1.2 |
Ø4.0 |
15 |
|
22 |
1.1-1.2 |
Ø5.0 |
17 |
|
25 |
1.1-1.2 |
Ø5.0 |
20 |
|
28 |
1.2-1.3 |
Ø5.0 |
23 |
|
32 |
1.2-1.4 |
Ø5.0 |
26 |
Technical Data
|
Speed |
600-1200books/hour |
|
Air Pressure |
5~8 Kgf |
|
Wire Diamater |
8-32mm |
|
Binding size |
75mm-420mm |
|
Power |
1PH220V 50/60HZ (other voltage on request) |
|
Size |
1900mmx1500mx1600mm |
|
Net weight |
620Kg |
