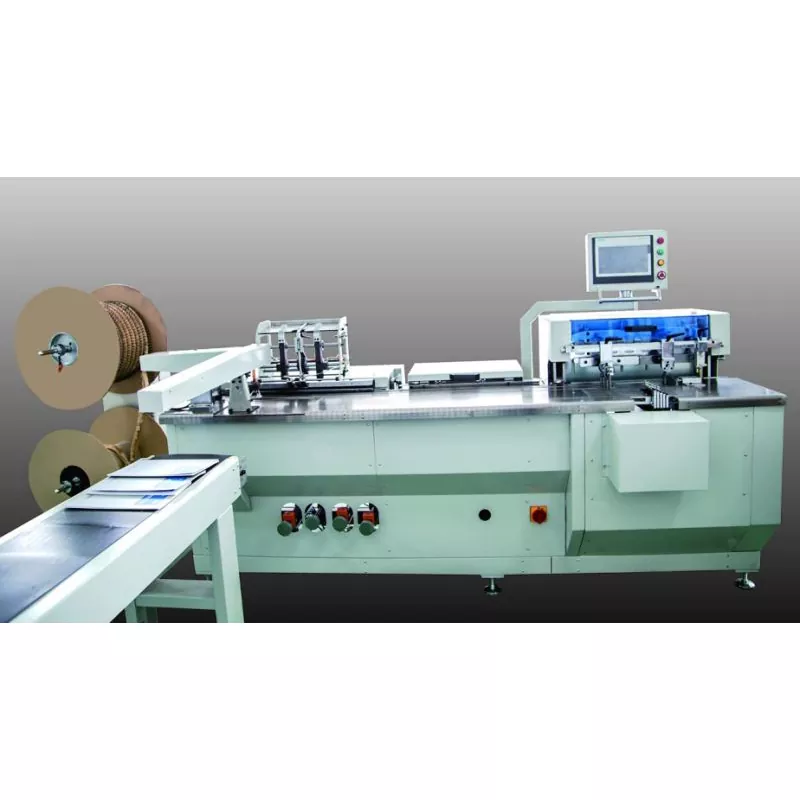

Double Wire Comb Punching and Binding Machine for Notebook

Ningbo Creative is a professional manufacturer for Double Wire Comb Punching and Binding Machine for Notebook. It’s very popular in European and American markets printing and stationary factory. Our products help customer save labour and improve effectiveness.

Send Inquiry

Product Description

Ningbo Creative is a double wire and spiral binding machine manufacturer for notebooks and calendar. We have been specialized in paper binding and punching area for more than 20 years. Double Wire Comb Punching and Binding Machine for Notebooks are very popular in Chinese printing and stationary factory for binding mass-production of desk calendars wall calendars, exercise-books, wire-o books etc.


It includes paper separation, punching, binding and collection.All these functions in one machine which with the optional of collator, calendar hanger inserting device, hard-cover manual punching.Double Wire Comb Punching and Binding Machine for Notebook and calendar which it’s used advanced and reliable PLC for main control system to set up the paraments.Any mistakes wouble be alarm in the screen and its convenient for operation. The system language could supply English, German, Russian, Japanese for choice. It can improve more production efficiency for customers to save labour to improve market competitiveness.

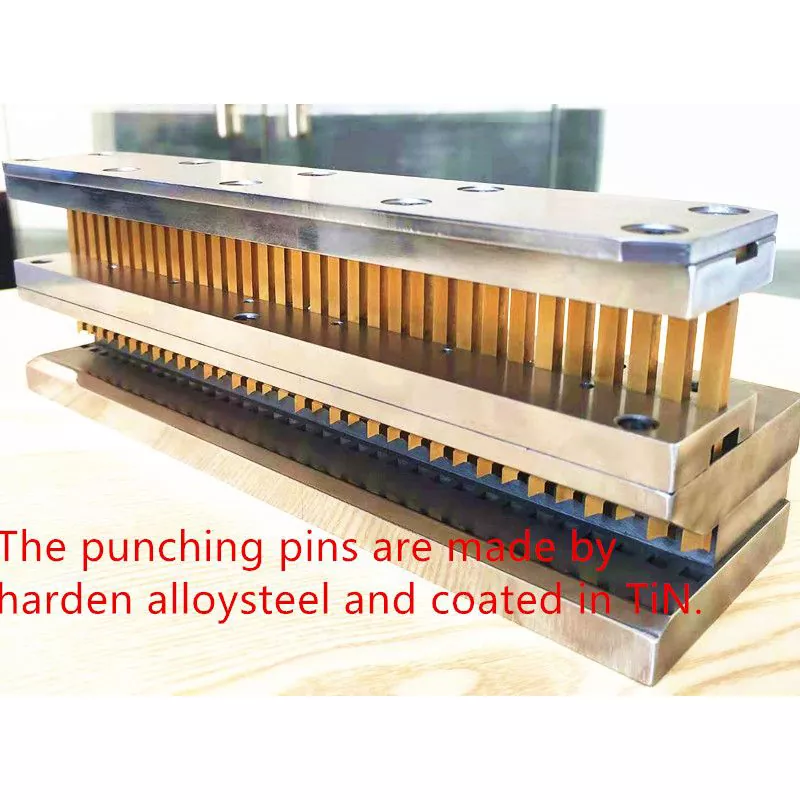

All electrical equipments are uesed famous brand in market. It’s easy to buy in customer market. The punching pins are made by harden alloysteel and coated in Tin.

Specification of the size:

Size

Pitch

 Wire Dia(mm)

 BindingThickness(mm)

Hole(mm)

1/4

3:1

Ф6.4

3.5

4x4

5/16

3:1

Ф7.9

 5

4x4

3/8

3:1

Ф9.5

6.5

4x4

7/16

3:1

Ф11.1

8.5

4.5x4.5

1/2

3:1

Ф12.7

10

4.5x4.5

9/16

3:1

Ф14.3

11.5

4.5x4.5

5/8

2:1

Ф15.9

13

5x5

3/4

2:1

Ф19.1

16

5x5

Technical Data



580

580S

Feature

Punching,aligning.closing 3stations

Feeding,punching, aligning, closing 4 stations

Application

Mid-production, easy to change size

Mass-production,high efficiency

Binding range

580mm*800mm

580mm*360mm

580mm*800mm

Ring size

1/4--3/4

1/4--3/4

Speed

Up to 1100 books/h

Up to 1500 books/h

Dimension

4mx1.3mx1.6m

6mx1.3mx1.6m

Weight

1700Kg

2200Kg

Power

3ph,380V 3ph,380V

  • Buy photos with wall calendar 580
  • Punching mold

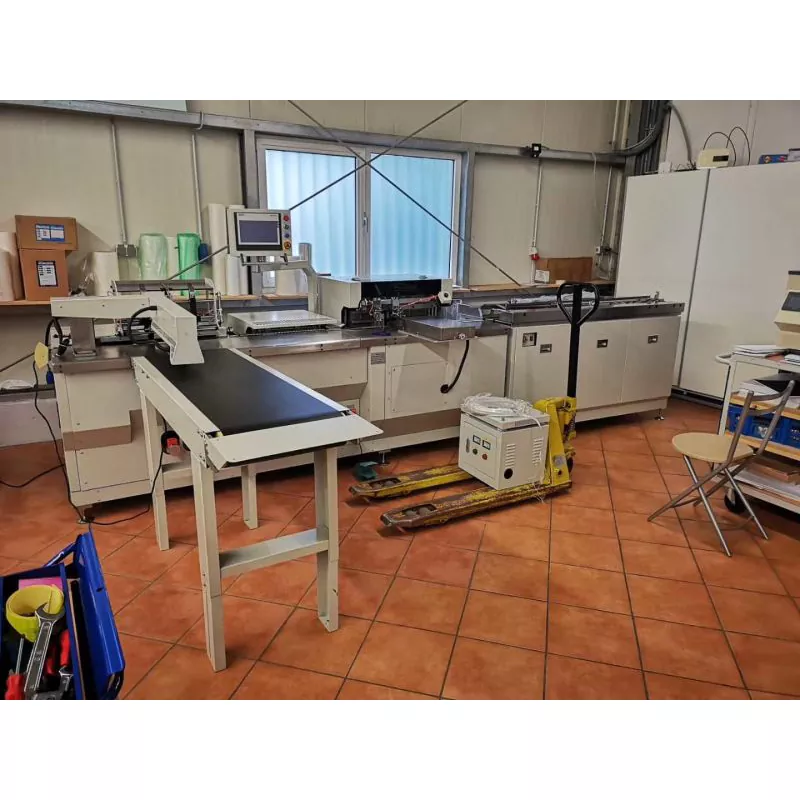

  • 580 workshop for foreign customers
  • Application

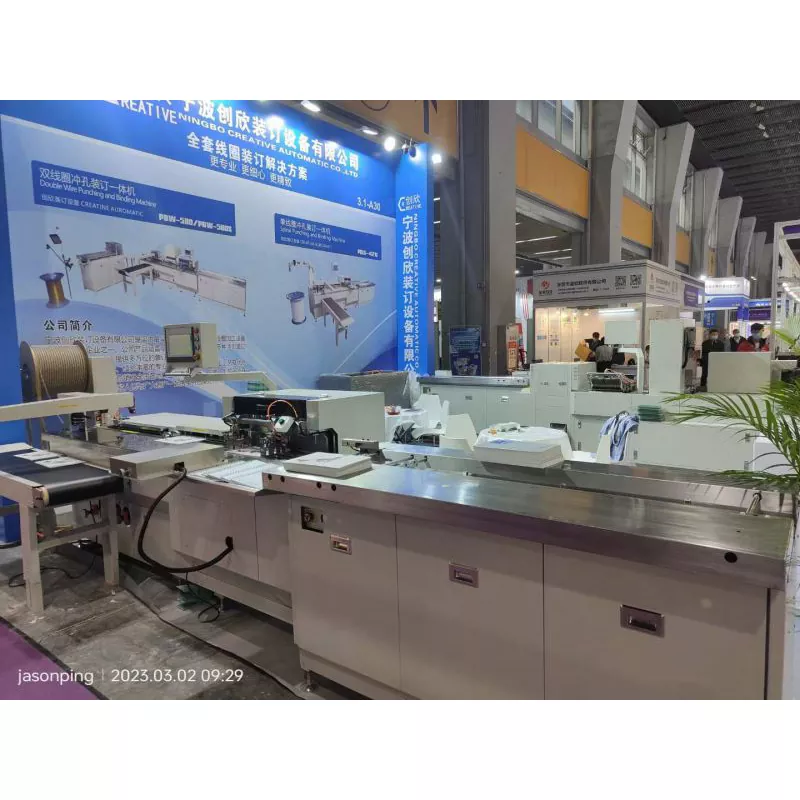

  • China Print Exhibition

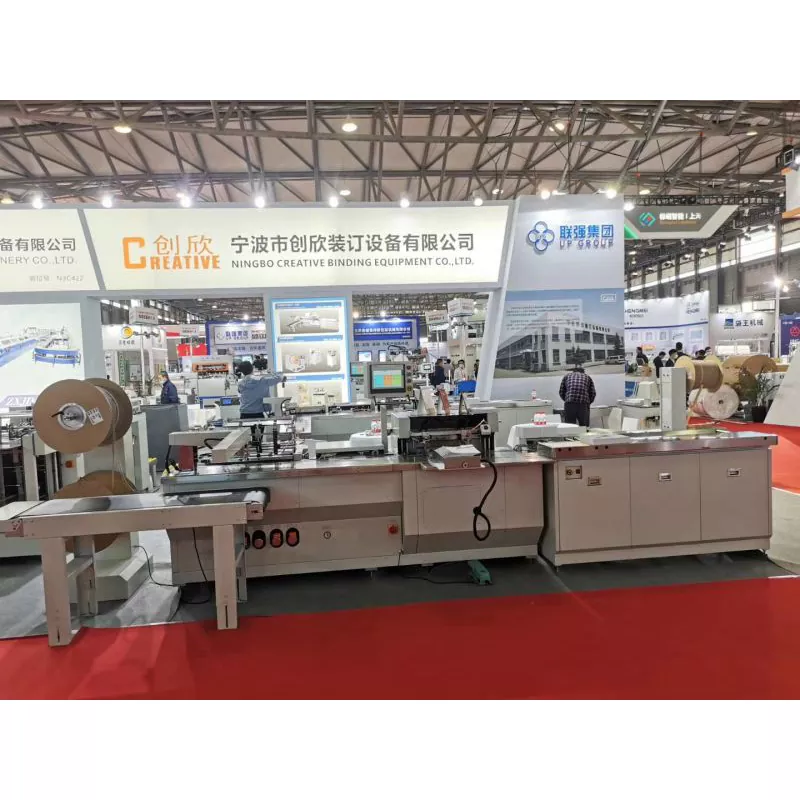

  • Shanghai All in Print China Exhibition
