Double Wire Closing Machine and Punching Machine for Exercise Book
  • Double Wire Closing Machine and Punching Machine for Exercise BookDouble Wire Closing Machine and Punching Machine for Exercise Book
  • Double Wire Closing Machine and Punching Machine for Exercise BookDouble Wire Closing Machine and Punching Machine for Exercise Book
  • Double Wire Closing Machine and Punching Machine for Exercise BookDouble Wire Closing Machine and Punching Machine for Exercise Book
  • Double Wire Closing Machine and Punching Machine for Exercise BookDouble Wire Closing Machine and Punching Machine for Exercise Book
  • Double Wire Closing Machine and Punching Machine for Exercise BookDouble Wire Closing Machine and Punching Machine for Exercise Book
  • Double Wire Closing Machine and Punching Machine for Exercise BookDouble Wire Closing Machine and Punching Machine for Exercise Book

Double Wire Closing Machine and Punching Machine for Exercise Book

Ningbo Creative Binding is an innovative manufacturing enterprise, which focus on the double wire and spiral binding equipments development. Double Wire Closing Machine and Punching Machine for Exercise Book is a perfect loose-leaf products punching and binding machinery for post-press process.

Send Inquiry

Product Description

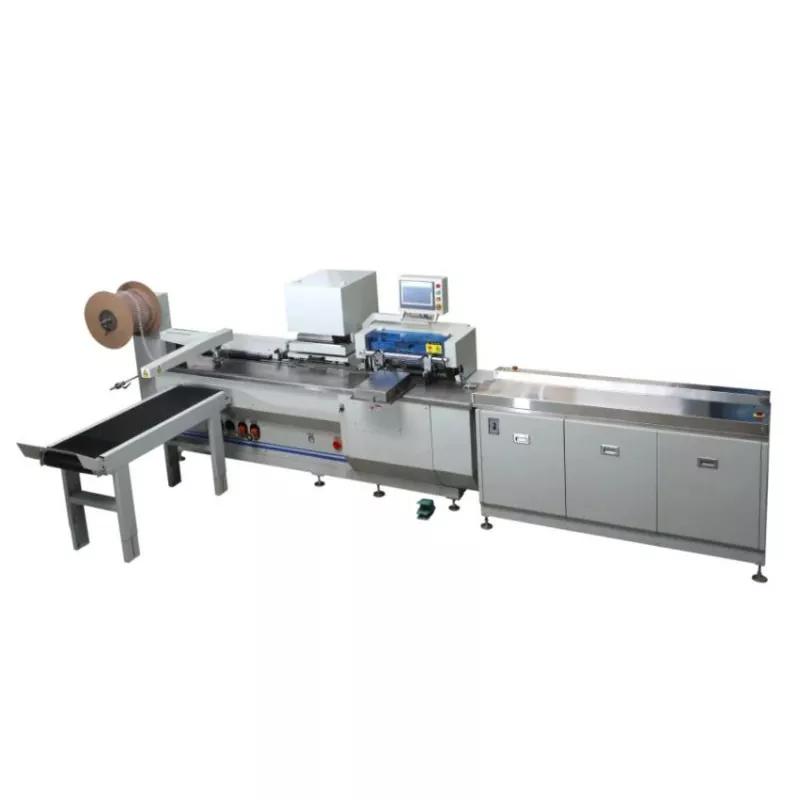

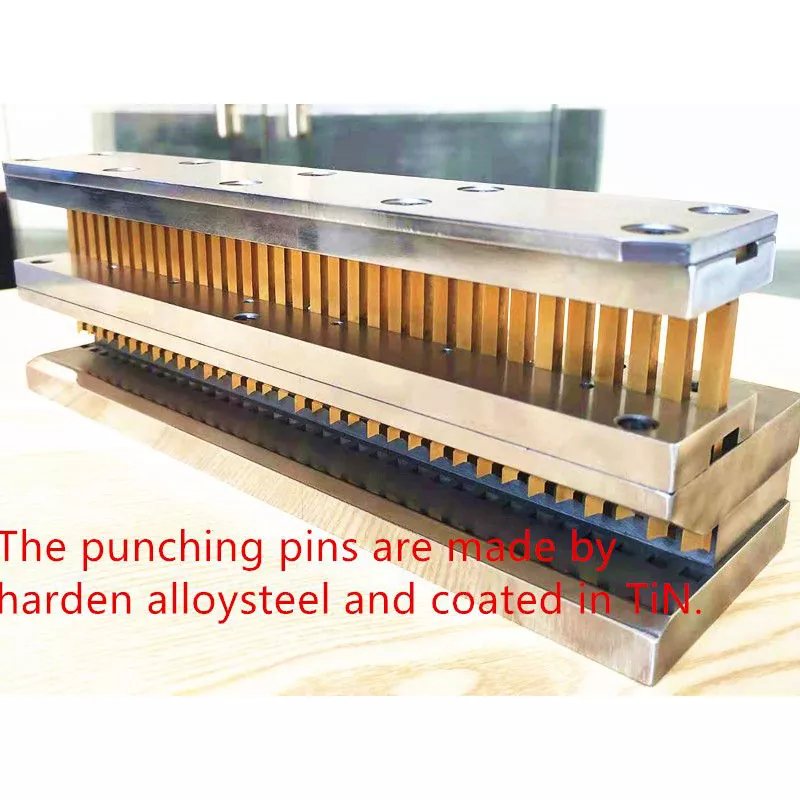

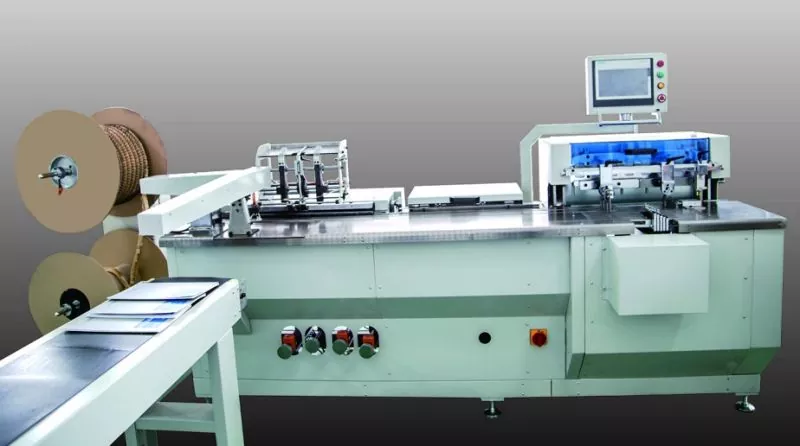

Double Wire Closing Machine and Punching Machine for Exercise Book is a good choice for post-press products. The punching pins are made by harden alloysteel and coated in Tin.The max speed of the Double Wire Punching and Binding machine is 1500 books/hour. The binding range is from 580mm to 70mm and the max thickness is 16mm.The wire size from 1/4 to 3/4. The machine is designed with 4 stations for feeding material, punching, aligning and binding. Each machine need 2 persons only. One for feeding books and the other for collection.We could provide customized services for special products.

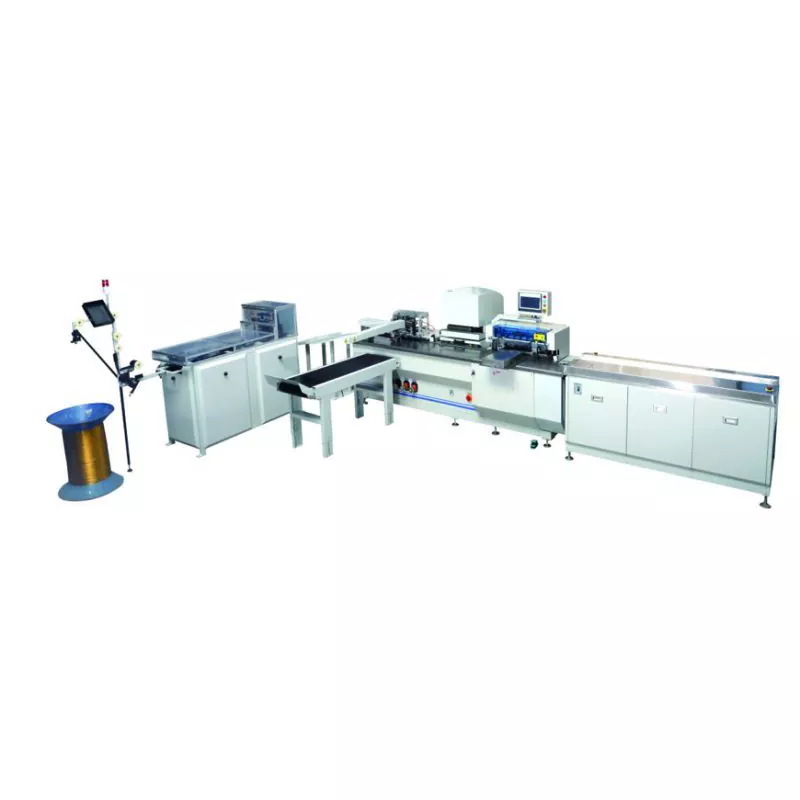

As the leading manufacturer in the post-press punching and binding industry in China, Ningbo Creative integrates improving the technology and finding new material for production. We offer Automatic Double loop wire punching and binding machine could be online with doule wire forming machine to help customer reduce the cost of double wire at least 50%. The Double Wire Closing Machine and Punching Machine for Exercise Book could attach the calendar hanger device to make the desk calendar, haner calendar and instruction book.


We hope to supply excellecnt service to our customers to build long-term business relation with all customers.

Specification of the size:

Size

Pitch

 Wire Dia(mm)

 BindingThickness(mm)

Hole(mm)

1/4

3:1

Ф6.4

3.5

4x4

5/16

3:1

Ф7.9

 5

4x4

3/8

3:1

Ф9.5

6.5

4x4

7/16

3:1

Ф11.1

8.5

4.5x4.5

1/2

3:1

Ф12.7

10

4.5x4.5

9/16

3:1

Ф14.3

11.5

4.5x4.5

5/8

2:1

Ф15.9

13

5x5

3/4

2:1

Ф19.1

16

5x5

Technical Data



580

580S

Feature

Punching,aligning.closing 3stations

Feeding,punching, aligning, closing 4 stations

Application

Mid-production, easy to change size

Mass-production,high efficiency

Binding range

580mm*800mm

580mm*360mm

580mm*800mm

Ring size

1/4--3/4

1/4--3/4

Speed

Up to 1100 books/h

Up to 1500 books/h

Dimension

4mx1.3mx1.6m

6mx1.3mx1.6m

Weight

1700Kg

2200Kg

Power

3ph,380V 3ph,380V
