Spiral Wire Punching and Binding Machine for Notebook with Hook
  • Spiral Wire Punching and Binding Machine for Notebook with HookSpiral Wire Punching and Binding Machine for Notebook with Hook
  • Spiral Wire Punching and Binding Machine for Notebook with HookSpiral Wire Punching and Binding Machine for Notebook with Hook
  • Spiral Wire Punching and Binding Machine for Notebook with HookSpiral Wire Punching and Binding Machine for Notebook with Hook
  • Spiral Wire Punching and Binding Machine for Notebook with HookSpiral Wire Punching and Binding Machine for Notebook with Hook
  • Spiral Wire Punching and Binding Machine for Notebook with HookSpiral Wire Punching and Binding Machine for Notebook with Hook

Spiral Wire Punching and Binding Machine for Notebook with Hook

Ningbo Creative pays great attention to the machines innovation and development of wire binding and punching technology expecially for Spiral Wire Punching and Binding Machine for Notebook with Hook.

Send Inquiry

Product Description

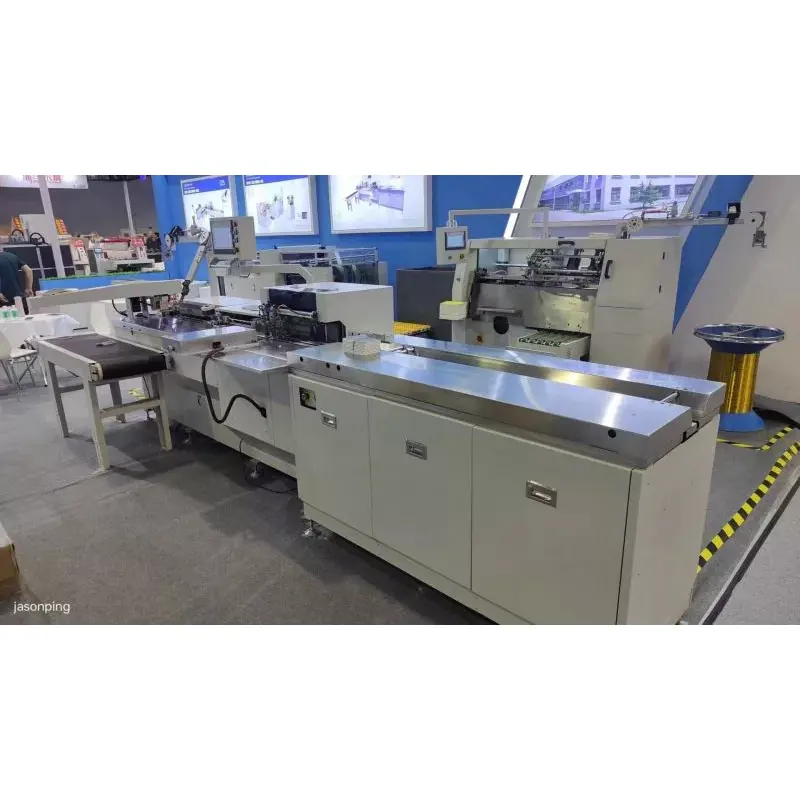

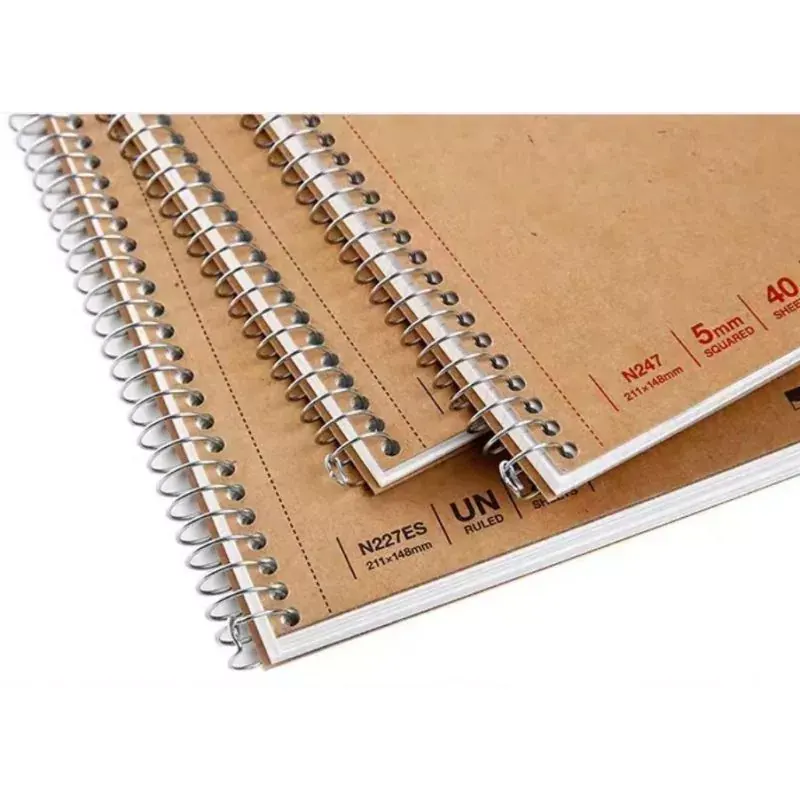

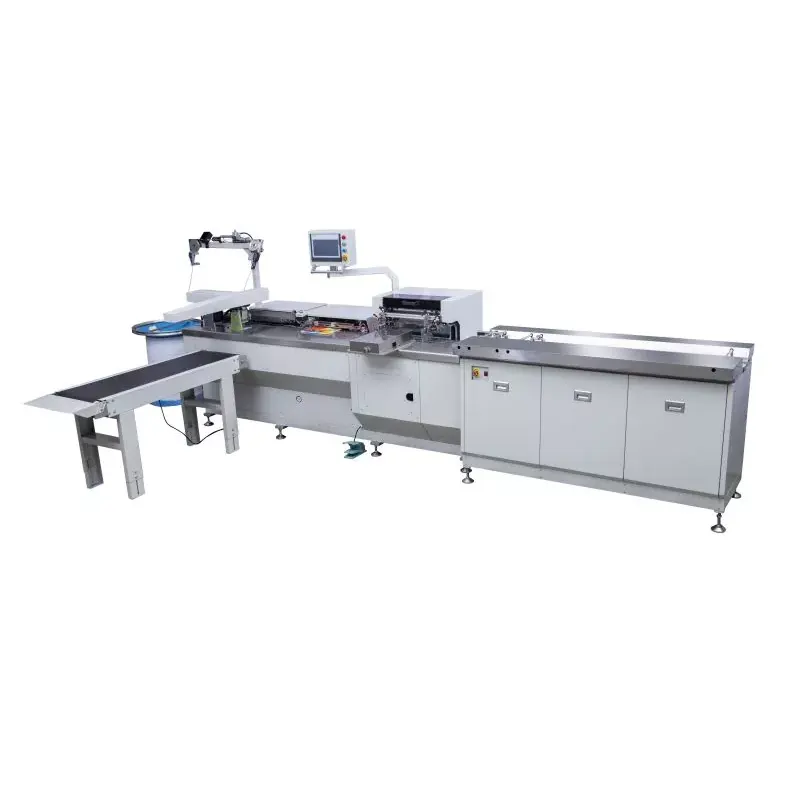

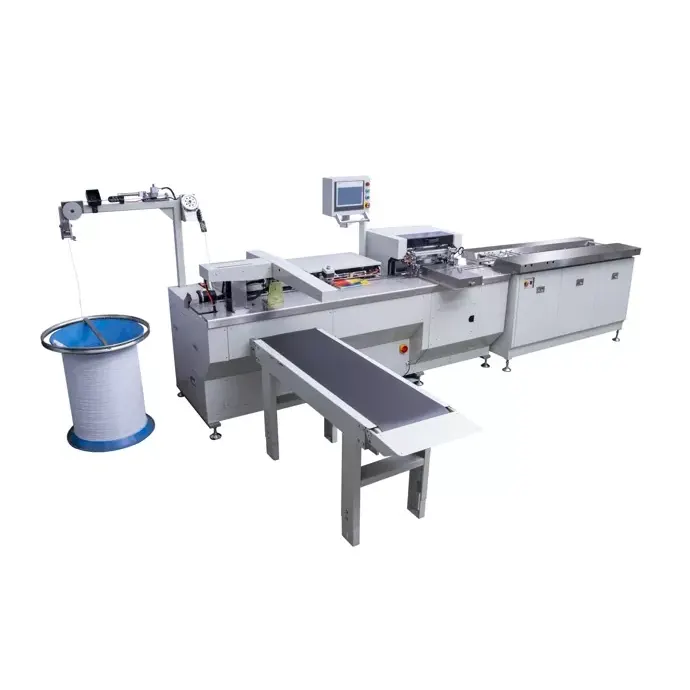

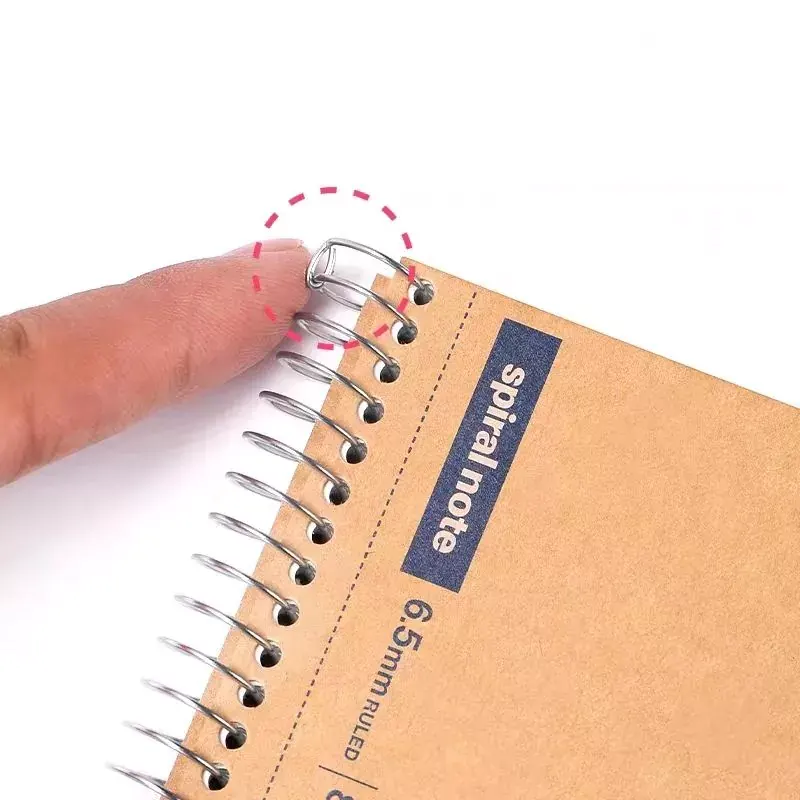

Spiral Wire punching and binding machine for Notebook with Hook is suitable for large-scale production of spiral books, magazines and other printing materials.Spiral Wire Punching and Binding Machine for Notebook with Hook integrates multiple processes such as automatic lavered punching automatic paper core arc, and spiral forming, looping, hooking, bending, which greatly improves the production efficiency of spiral binding.G-type back hook scissors can be selected to produce high-end book.


Spiral Wire Punching and Binding Machine for Notebook with Hook is controlled by microcomputer PLC , simple operation easy to adjust. It can be used for binding medium and thick books, and the max binding thickness can be up to 20 mm. It's used in the production of hard cover volume which the binding cover larger than the inner paper. Spiral Wire Punching and Binding Machine for Notebook with Hook uses the optimization program which monitors alarm, the intelligent coordination way to run the program, it may reduce reduce the induction electrical failure, equipment program operation is more stable and reliable.Spiral Wire Punching and Binding Machine for Notebook with Hook is supplied collection device for collect the books with accurate counting.

Specification

Binding Thickness(mm)

Wire dia(mm)

Wire dia(mm)

Recommend hole dia(mm)

5

8

0.8-0.9

3

7

10

0.9-1.0

3

9

12

1.0-1.1

4

11

14

1.0-1.1

4

12

16

1.1-1.2

4

14

18

1.1-1.2

4

16

20

1.1-1.2

4

18

22

1,1-1.2

5

20

25

1,1-1.2

5

Technical Data

Binding format

Max 420mm

 Mini 70mm

Binding coi diameter

Max25mm

 Mini8mm

Binding hole spacing optional range

5,66.35,8,8.47mm

Circle diameter range

G-type back hook scissors

14-25mm (customized if less than 14mm)

Overall dimension

 6X1.3X1.7m

Weight

1800KG

Voltage

3PH 380V

Air compressor

5-8 KGF
