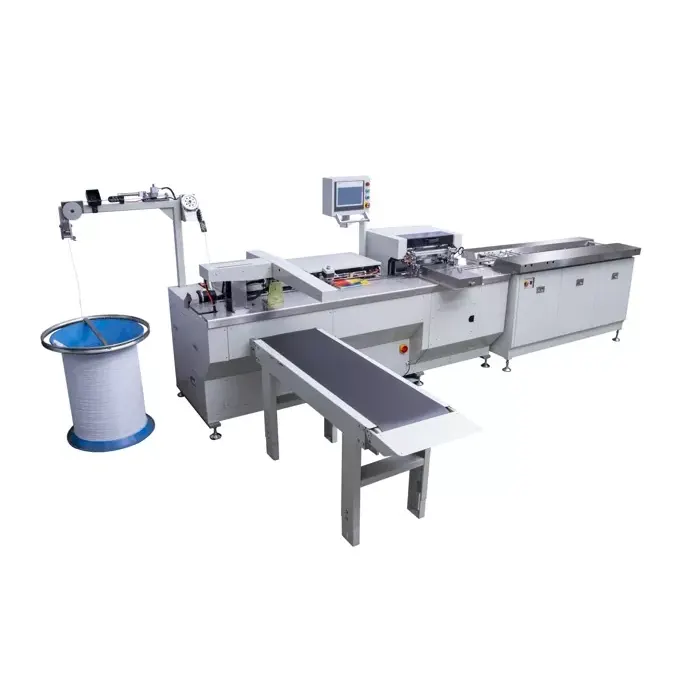

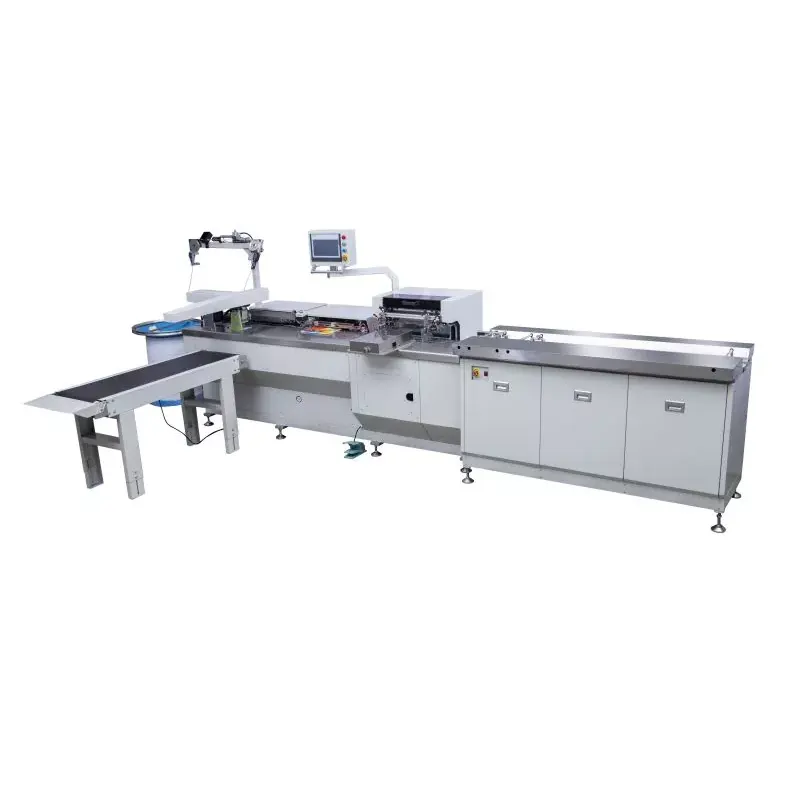

Loose Leaf Spiral Wire Punching and Binding Machine for Notebook with Hook is elaborated by Ningbo Creative Automatic company which is full of experience in doublw wire and spiral binding and punching machine. The machine could be forming and binding at the same time.

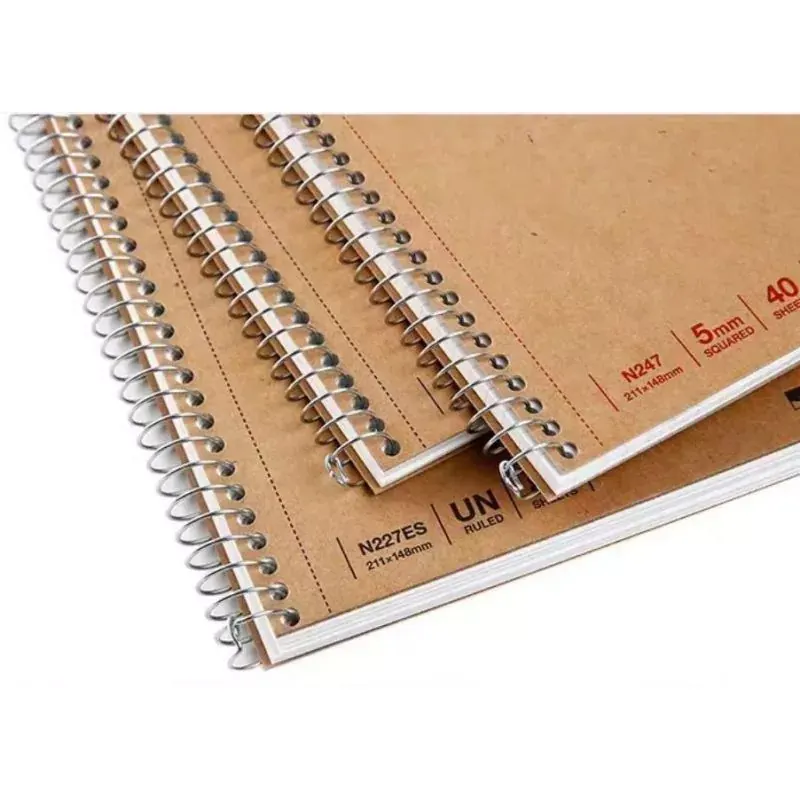

Loose Leaf Spiral Wire Punching and Binding Machine for Notebook with Hook with Hook is widely used in all kinds of notebooks and periodicals, and exercise book. It’ could be automatic feeding, punching and add cover, wire forming, coiling, cutting, hook, collection books. It greatly increases the production efficiency. Single Wire Binding Machine for Book with G-Hook has the following features to satisfy client’s requirments:
Binding Thickness(mm) |
Wire dia(mm) |
Wire dia(mm) |
Recommend hole dia(mm) |
5 |
8 |
0.8-0.9 |
3 |
7 |
10 |
0.9-1.0 |
3 |
9 |
12 |
1.0-1.1 |
4 |
11 |
14 |
1.0-1.1 |
4 |
12 |
16 |
1.1-1.2 |
4 |
14 |
18 |
1.1-1.2 |
4 |
16 |
20 |
1.1-1.2 |
4 |
18 |
22 |
1,1-1.2 |
5 |
20 |
25 |
1,1-1.2 |
5 |
Binding format |
Max 420mm |
Mini 70mm |
Binding coi diameter |
Max25mm |
Mini8mm |
Binding hole spacing optional range |
5,66.35,8,8.47mm |
|

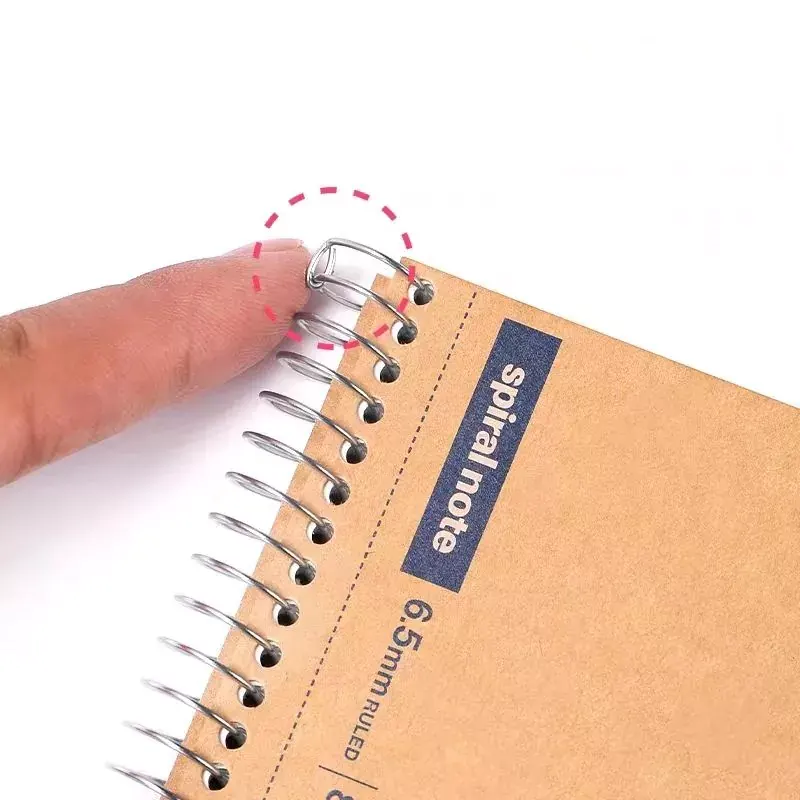

Circle diameter range G-type back hook scissors |
14-25mm (customized if less than 14mm) |
|
Overall dimension |
6X1.3X1.7m |
|
Weight |
1800KG |
|
Voltage |
3PH 380V |
|
Air compressor |
5-8 KGF |
