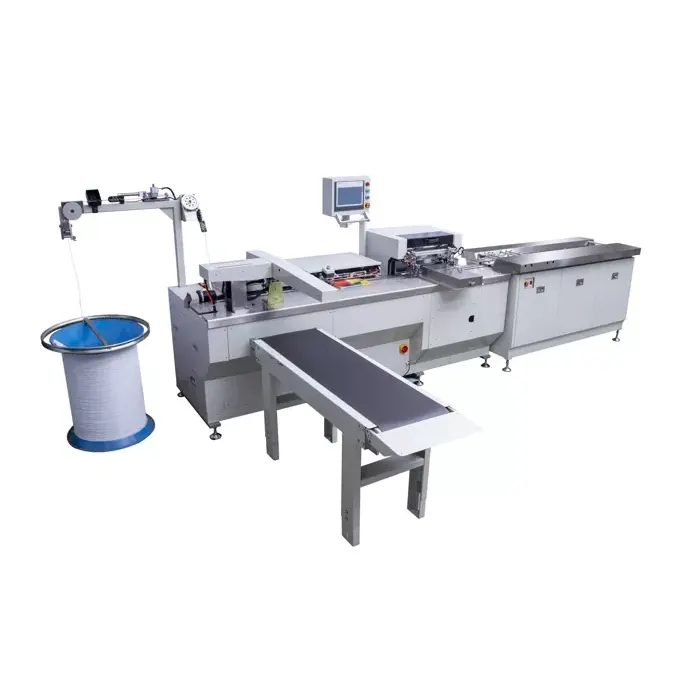

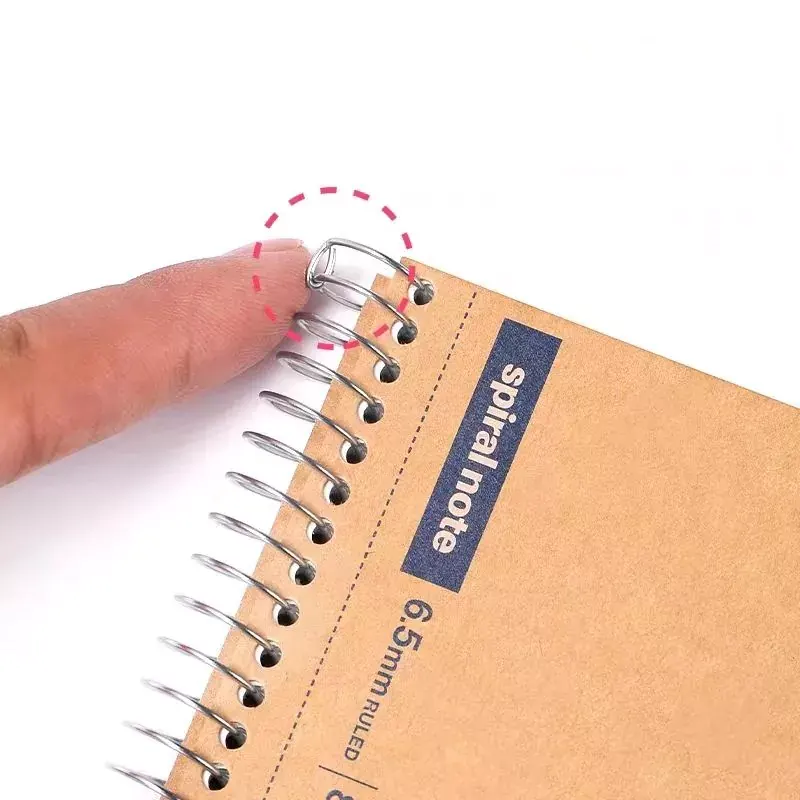

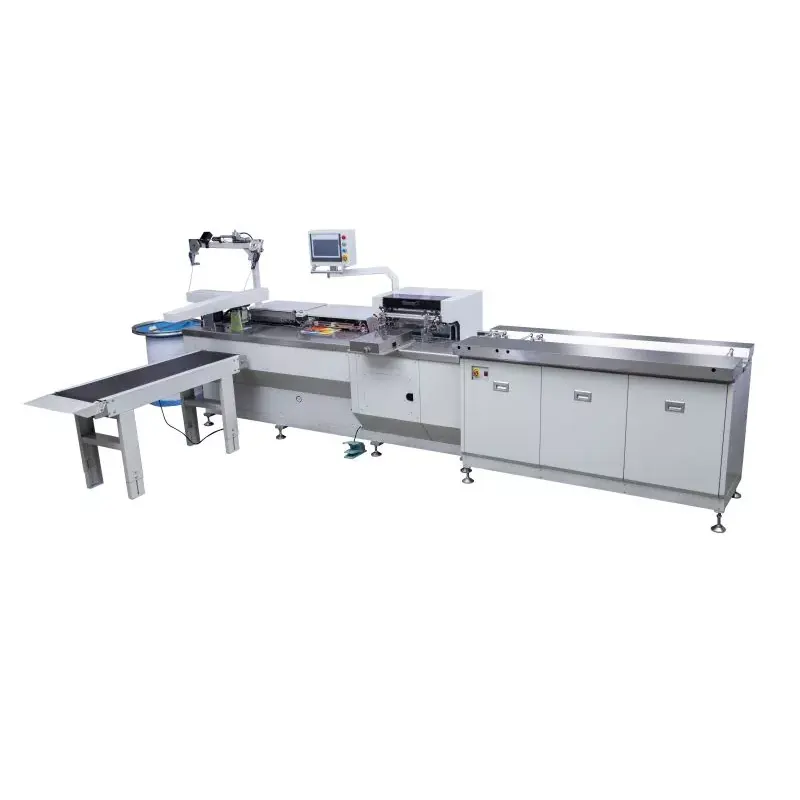

Automatic Spiral Wire Punching and Binding Machine is well designed by Ningbo Creative technical team who is full of experience in spiral binding and punching machine. The machine could make G-hook to preventing scratches hands.

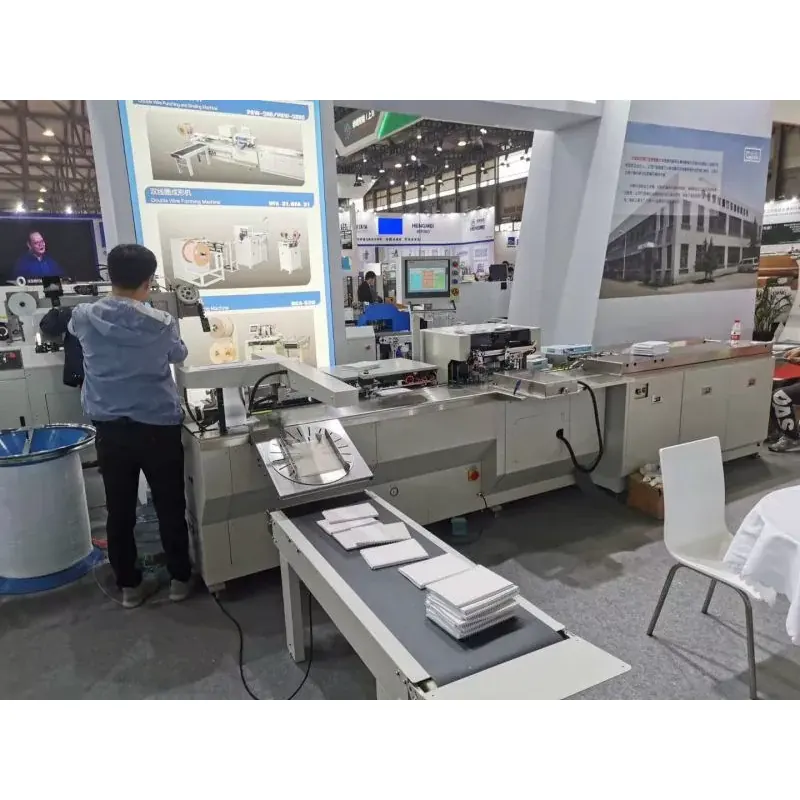

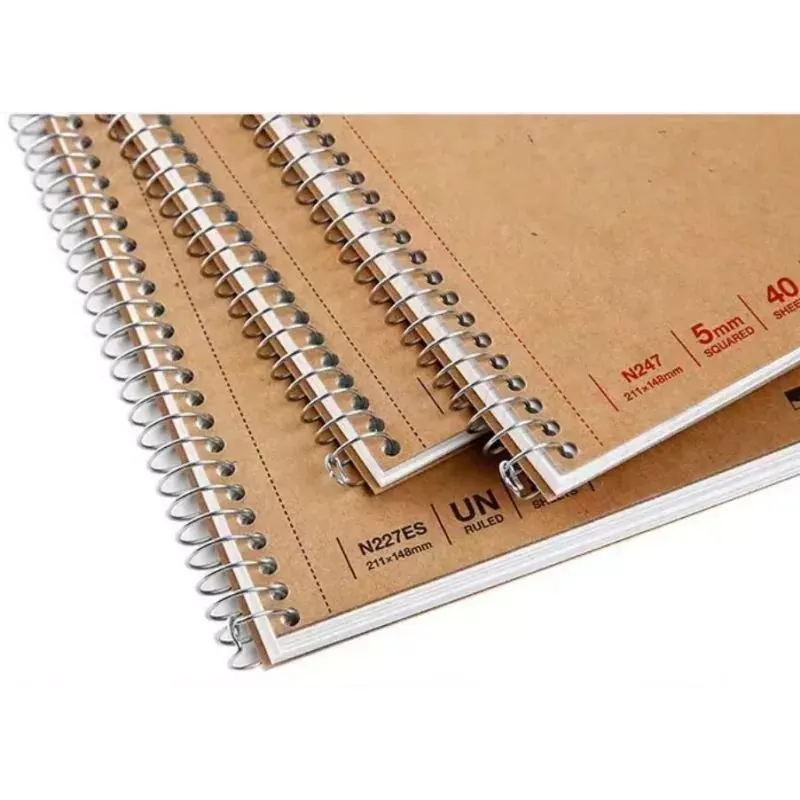

Automatic Spiral Wire Punching and Binding Machine is widely used in all kinds of books and periodicals, book and desk calendar, etc. It’s inline machine which could be automatic feeding, punching and add cover, wire forming, coiling, cutting, hook, collection. It greatly improves the production efficiency, standardizes the production level as the mainstream spiral binding automation equipment.
Automatic Spiral Wire Punching and Binding Machine has the following characteristics:
It’s controlled by microcomputer, by the touch screen directly on the equipment control, simple operation easy to adjust.
According to the requirements of the international market and comprehensive various equipment, based on the process standards of production and the actual situation of raw materials design research and development, it has extensive advantages of applicability, reliable stability, low loss and energy saving, etc.
It uses the optimization program which monitors and helps each other, the intelligent coordination way to run the program, thus complete the entire process, it may reduce the use of sensors, reduce the induction equipment electrical failure, equipment program operation is more stable and reliable.
Binding Thickness(mm) |
Wire dia(mm) |
Wire dia(mm) |
Recommend hole dia(mm) |
5 |
8 |
0.8-0.9 |
3 |
7 |
10 |
0.9-1.0 |
3 |
9 |
12 |
1.0-1.1 |
4 |
11 |
14 |
1.0-1.1 |
4 |
12 |
16 |
1.1-1.2 |
4 |
14 |
18 |
1.1-1.2 |
4 |
16 |
20 |
1.1-1.2 |
4 |
18 |
22 |
1,1-1.2 |
5 |
20 |
25 |
1,1-1.2 |
5 |
Binding format |
Max 420mm |
Mini 70mm |
Binding coi diameter |
Max25mm |
Mini8mm |
Binding hole spacing optional range |
5,66.35,8,8.47mm |
|
Circle diameter range G-type back hook scissors |
14-25mm (customized if less than 14mm) |
|
Overall dimension |
6X1.3X1.7m |
|
Weight |
1800KG |
|
Voltage |
3PH 380V |
|
Air compressor |
5-8 KGF |
