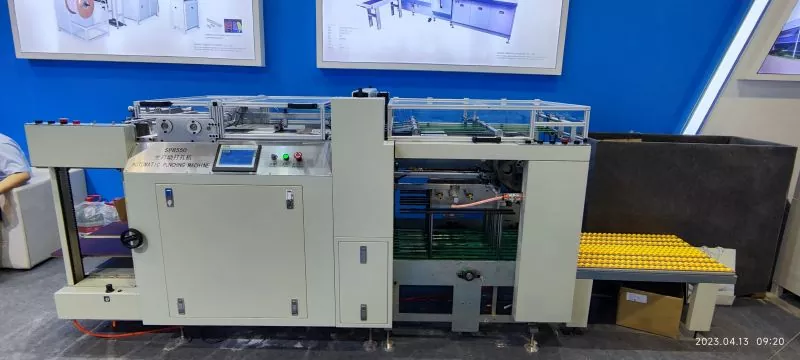

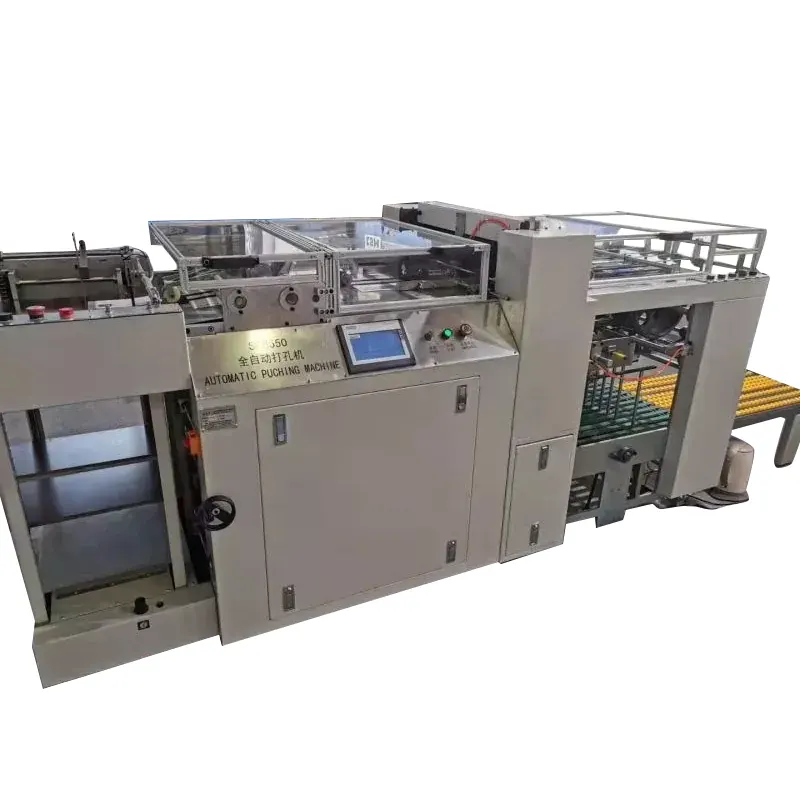

High Speed Punching Machine for Paper

Ningbo Creative Automatic Co., Ltd starts from 2008 and covers 5, 000m2 with the annually capabilty of manufacturing High Speed Punching Machine for Paper as an enterprise which focuses on researching and developing, manufacture, sales of Fully Automatic High Speed Punching Machine for Paper.

Send Inquiry

Product Description

High Speed Punching Machine for Paper is mostly applicable for punching holes in all kinds of notebook,book and periodicals,calendars paper,tutorial paper in batch,especially for width paper and press paper.With the integration of automatic separating,punching,and

receiving paper,it increases the production efficiency remarkably.The reasonable structural design provides you a high cost performance.

There are 5Advantages of High Speed Punching Machine for Paper：

1.Simple and quick size adjustment.Easy and quick changing of punching mold.

2.The paper separating system can guarantee the sequence without turning over the paper, high compatibility and low failure rate.

3.Simple operating system,easy to cooperate machine.

4.High quality of punching hole,accurate punching position.

5.In the lack of paper,paper arrived at the limit height will automatically stop and alarm.

We confirm High Speed Punching Machine for Paper will make you satisfy on efficiency and quality. In order to make the machine do the best and use for a long time,the operator could learn operation from the safety training, manual and video operation.

Technical Data:

Max.sheet	550x600mm
Min. sheet	120x100mm
Max. punching thickness	3 mm
Weight of paper	60-350gam
Punching speed	Up to 7200 punch times/hour
The max height of paper	500mm
Power	3PH 380V 50Hz (other voltage on request)
Main motor power	3kw
Dimension(LxWxH)	2200x1300x1200mm
Net weight	1600Kg
