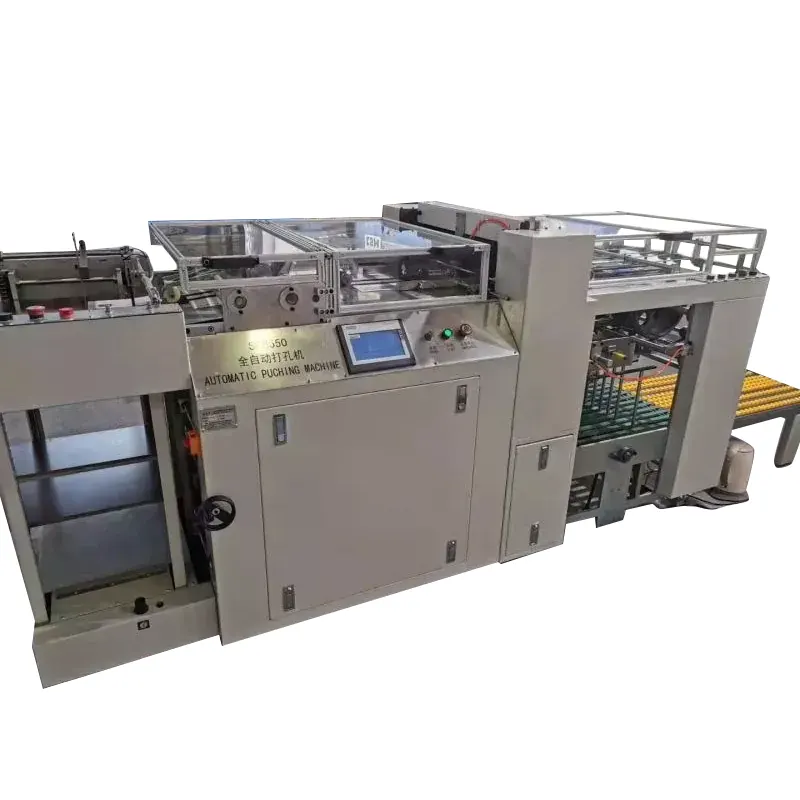

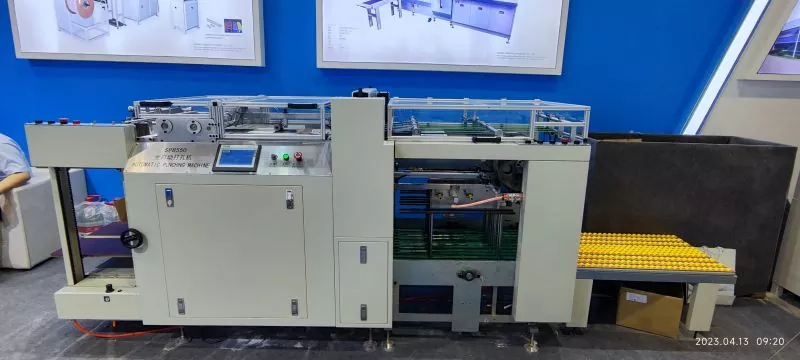

High Speed Punching Machine for Notebook

With the integrity of post print products, Ningbo Creative Binding is a famous top brand in China to supply binding and punching solutions to satisfy the needs of the clients. High Speed Punching Machine for Notebooks is a hot sale paper punching machine which is good choice for your.

Send Inquiry

Product Description

High Speed Punching Machine for Notebook is widly applied for punching different paper size, max punching width 600mm and 3mm thickness of presspaper. The machine is designed with intelligence and is easy operation and high safety for operation.High Speed Punching Machine for Notebook could make special punching hole moudlefor the customer's request within the size of paper.

High Speed Punching Machine for Notebook is good quality for punching without deckle edge and accurate punching position. The punching speed is 7200 times/ hour.

Fully Automatic High Speed Punching Machine for Notebook is simple and easy tolearn operation. The paper separating system can guarantee the quality of the paper with high compatibility and low failure rate. It’s convenient to replace the punching mold which is easily accurate ounching position. If lack of paper, the sensor could be automatically alarm. The High Speed Paper Punching Machine is packed by export wooden case standard, strong and durable.

We confirm Fully Automatic High Speed Paper Punching Machine will make you satisfied for specification. The operator could learn operation from the safety training, manual and video operation for long-term life.

Technical Data:

Max.sheet	550x600mm
Min. sheet	120x100mm
Max. punching thickness	3 mm
Weight of paper	60-350gam
Punching speed	Up to 7200 punch times/hour
The max height of paper	500mm
Power	3PH 380V 50Hz (other voltage on request)
Main motor power	3kw
Dimension(LxWxH)	2200x1300x1200mm
Net weight	1600Kg
