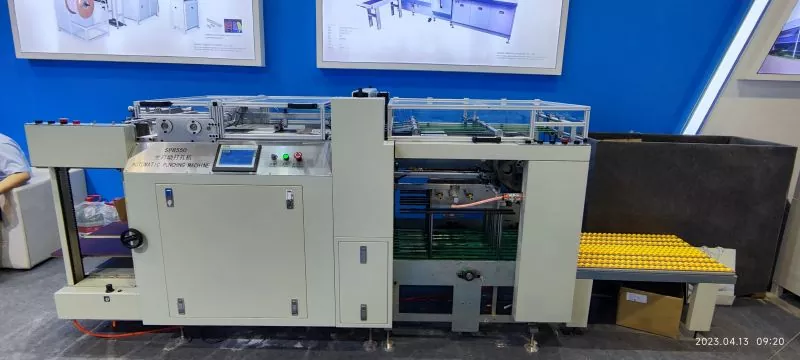

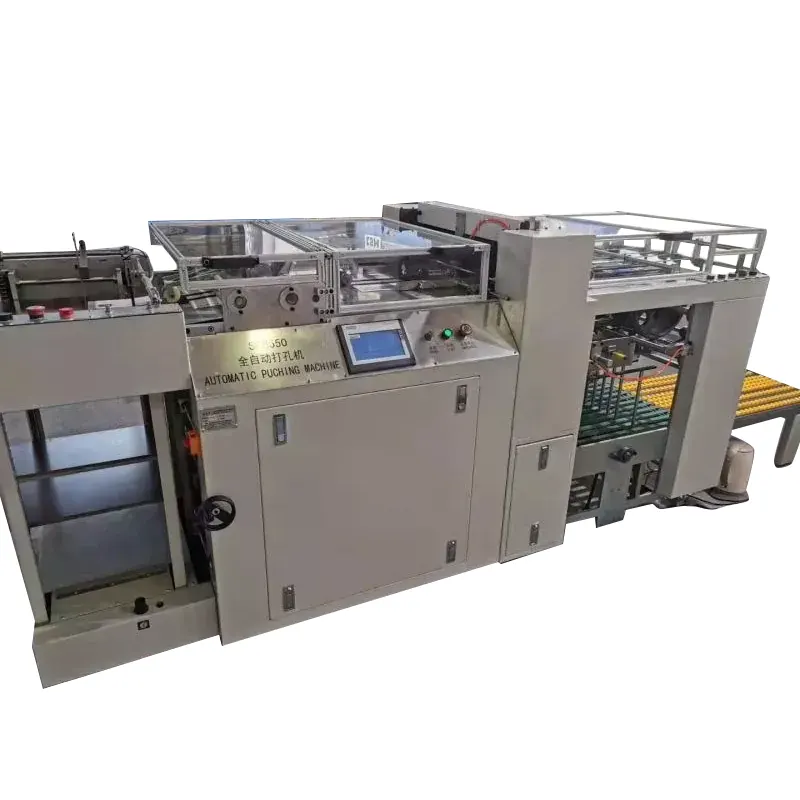

High Speed Punching Machine for Hardcover PP

With the aim “high quality is high development”, Ningbo Creative Binding would like to be the top brand to satisfy the needs of the clients. High Speed Punching Machine for Hardcover PP is a type of popular paper and hard cover punching machine for printing and stationary factory.

Send Inquiry

Product Description

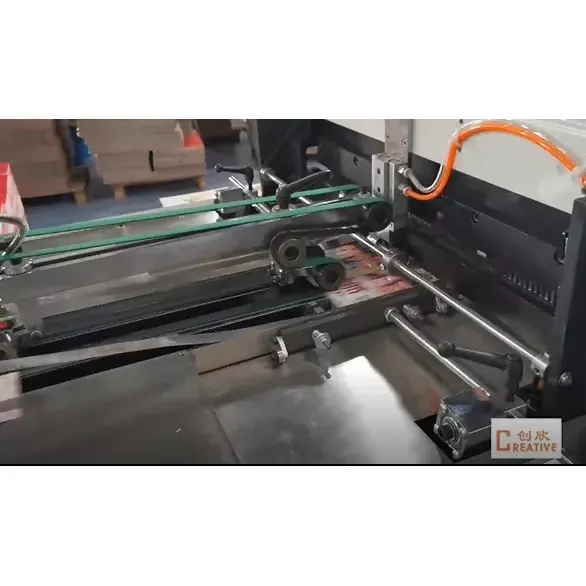

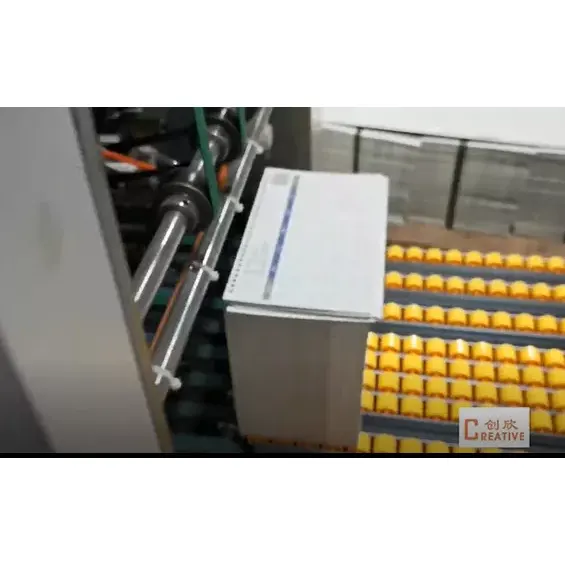

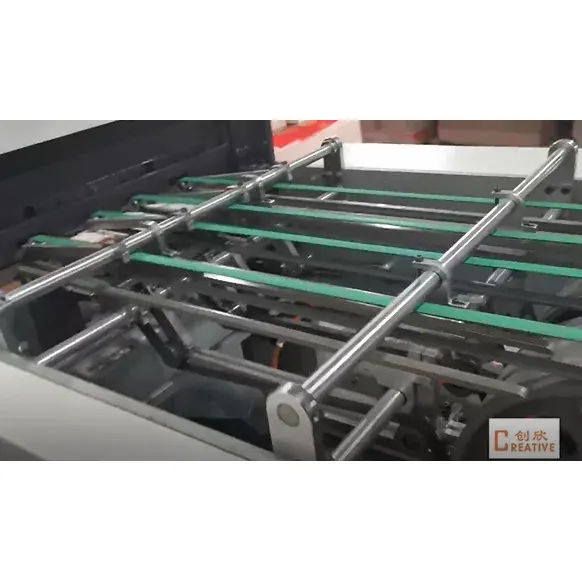

High Speed Punching Machine for Paper is mostly suitable for paper punching holes in all kinds of exercise book, clendars, hardcover and tutorial paper in batch,especially for width paper and press paper. It improves the production efficiency of punching with the integration of automatic separating,punching,and receiving paper.

High Speed Punching Machine for Hardcover PP is used for the paper and hard cover with weight 55-200g.The machine is equipped with the special format conversion device and the speed controller. Format: X≥300 is big format, X<300 is small format.

The big format need to be operated under big format situation( with speed 70-100 punch time/min), the small format could be operated under big format situation and small format situation,but small situation is better. The Speed is 70-120 punch time/min.Depends on format,weight and so on.

High Speed Punching Machine for Hardcover PP passed the certification of CE and IS09001: 2008. Ningbo Creative products are popular not only by domestic market but also exported to USA, South and North Amercia, Middle-East, Europe, Asia including Japan, Korea, Indonesia, Malaysia, Philippines, Thailand and so on.

Technical Data:

Max.sheet	550x600mm
Min. sheet	120x100mm
Max. punching thickness	3 mm
Weight of paper	60-350gam
Punching speed	Up to 7200 punch times/hour
The max height of paper	500mm
Power	3PH 380V 50Hz (other voltage on request)
Main motor power	3kw
Dimension(LxWxH)	2200x1300x1200mm
Net weight	1600Kg
