Double Coil Binding Machine for Calendar is created by Ningbo Creative binding company which is a professional loose leaf binding machine maker in China. We are good at supplying binding solutions for customers.

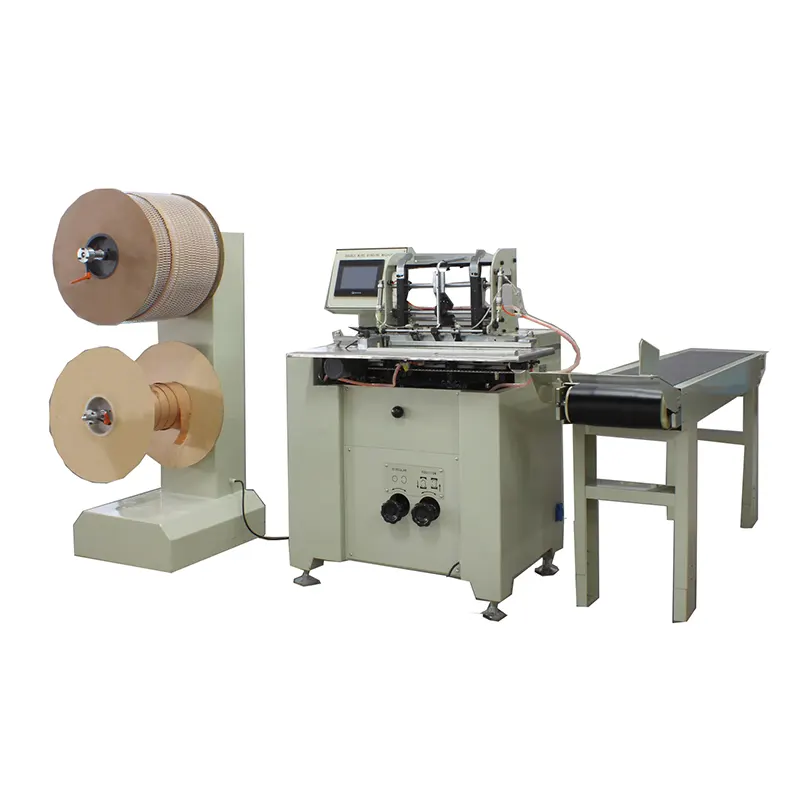

Double Coil Binding Machine for Calendar is an semi-automatic machine for making desk calendar and notebooks. The machine could auto cutting and binding, skip binding to many holes allowed. Double coil binding, also known as twin loop wire binding. One of the advantages of using a double coil binding machine for calendars is the durability and flexibility of the binding. The double coil binding method creates a strong and sturdy binding that can withstand frequent use, making it an ideal choice for calendars that need to be flipped through regularly. Additionally, the double coil binding allows the calendar to lay flat when opened, making it easier to view and use.
We also have many certificates for Double Coil Binding Machine for Calendar. It’s adopted advanced PLC control system, the display screen can set up the working datas, and show the working status of the machine real-timely. Designing and manufacturing for normal wire and paper, so the machine is very efficiently and reliably.
By changing the individually size closing moulds various loops diameters can be processed. and the changing of the moulds is fast and easy.
Optional calendar hanger for calendarmaking customer choice.
Size |
Pitch |
Hole(mm) |
Wire dia(mm) |
Thickness (mm) |
Pages |
1/4 |
3:1 |
4.0*4.0 |
6.4 |
4.9 |
45 |
5/16 |
3:1 |
4.0*4.0 |
7.9 |
6.3 |
60 |
3/8 |
3:1 |
4.0*4.0 |
9.5 |
7.9 |
70 |
7/16 |
3:1 |
4.5*4.5 |
11.1 |
9.3 |
85 |
1/2 |
3:1 |
4.5*4.5 |
12.7 |
10.9 |
100 |
9/16 |
3:1 |
4.5*4.5 |
14.3 |
12.2 |
120 |
5/8 |
2:1 |
5.0*5.0 |
15.9 |
13.4 |
130 |
3/4 |
2:1 |
5.0*5.0 |
19.1 |
16.6 |
160 |
Speed |
1500volume/hour |
Air Pressure |
5-8Kgf |
Wire Diameter |
1/4"-3/4 |
Workbench Dimension |
680x310mm |
The max width of binding |
520mm |
Power |
1PH 220V 50/80Hz (other voltage on request) |
Main machine |
780x730x1150mm |
Feeding reel |
600x500x1320mm |
Net weight |
300Kg |
