Calendar Binding Machine is the popular double wire binding machine in printing factory. Ningbo Creative is a professional calender binding machine maker in China.

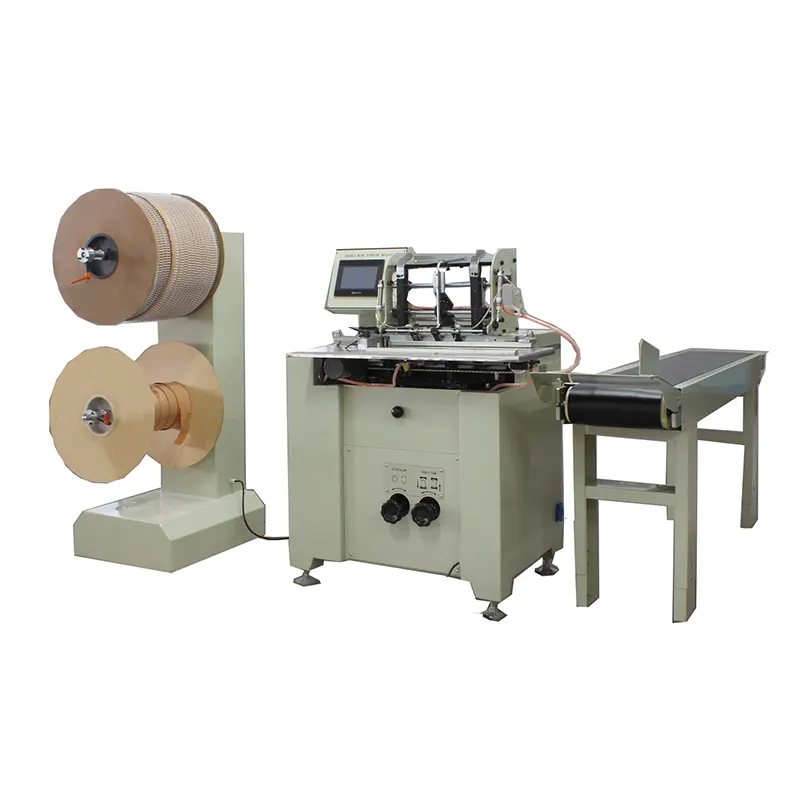

Calendar binding machine is a double wire loop binding machine for wall calendar and desk calendar. Calendar binding machine is equipped with a mechanism that pulls the double-loop wire from a spool and feeds it into the machine to be inserted into the punched holes.One advantage of using a calendar binding machine is that it creates a professional and durable binding that can withstand frequent use. The wire binding element provides a sturdy attachment to the backing board or cover, and the evenly spaced holes ensure that the pages are aligned and secure.Another advantage of using a calendar binding machine is its efficiency. The machine can quickly and easily bind large quantities of calendar pages, reducing the time and labor required for manual binding.
The max speed of Calendar Binding Machine is 1500books/hour. The max binding range is 520mm for wall calendar. The binding size from 1/4 to 3/4 and max binding thickness is 16.6mm.
We also have many certificates for alendar Binding Machine. It’s adopted advanced PLC control system, the display screen can set up the working datas, and show the working status of the machine real-timely. Designing and manufacturing for normal wire and paper, so the machine is very efficiently and reliably.
Size |
Pitch |
Hole(mm) |
Wire dia(mm) |
Thickness (mm) |
Pages |
1/4 |
3:1 |
4.0*4.0 |
6.4 |
4.9 |
45 |
5/16 |
3:1 |
4.0*4.0 |
7.9 |
6.3 |
60 |
3/8 |
3:1 |
4.0*4.0 |
9.5 |
7.9 |
70 |
7/16 |
3:1 |
4.5*4.5 |
11.1 |
9.3 |
85 |
1/2 |
3:1 |
4.5*4.5 |
12.7 |
10.9 |
100 |
9/16 |
3:1 |
4.5*4.5 |
14.3 |
12.2 |
120 |
5/8 |
2:1 |
5.0*5.0 |
15.9 |
13.4 |
130 |
3/4 |
2:1 |
5.0*5.0 |
19.1 |
16.6 |
160 |
Speed |
1500volume/hour |
Air Pressure |
5-8Kgf |
Wire Diameter |
1/4"-3/4 |
Workbench Dimension |
680x310mm |
The max width of binding |
520mm |
Power |
1PH 220V 50/80Hz (other voltage on request) |
Main machine |
780x730x1150mm |
Feeding reel |
600x500x1320mm |
Net weight |
300Kg |
