Double O Binding Machine for Exercise Book
double O binding machine for exercise books is a device made by Chinese factory that binds the pages of an exercise book together using the YO binding method.
Send Inquiry
Product Description

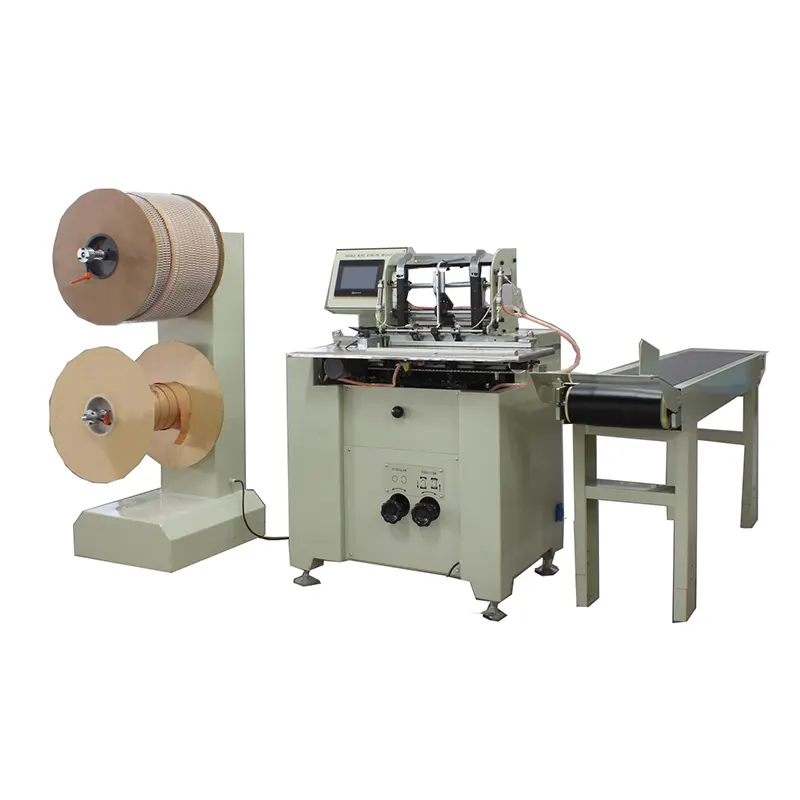

Semi-auto Double loop wire YO notebook binding machine is the popular binding machine in the world.Double O Binding Machine for Exercise Book making involves feeding a double-loop wire through punched holes in the edge of the exercise book pages to create a strong and sturdy binding. The machine typically consists of a wire feeding mechanism and a binding mechanism, which work together to efficiently produce high volumes of bound exercise books. Overall, a double YO binding machine is suitable for exercise books, notebooks and sketch book and album which is a durable and cost-effective investment for those who frequently produce exercise books.
Double O Binding Machine for Exercise Book is equipped with a mechanism that pulls the double-loop wire from a spool and feeds it into the machine to be inserted into the punched holes.

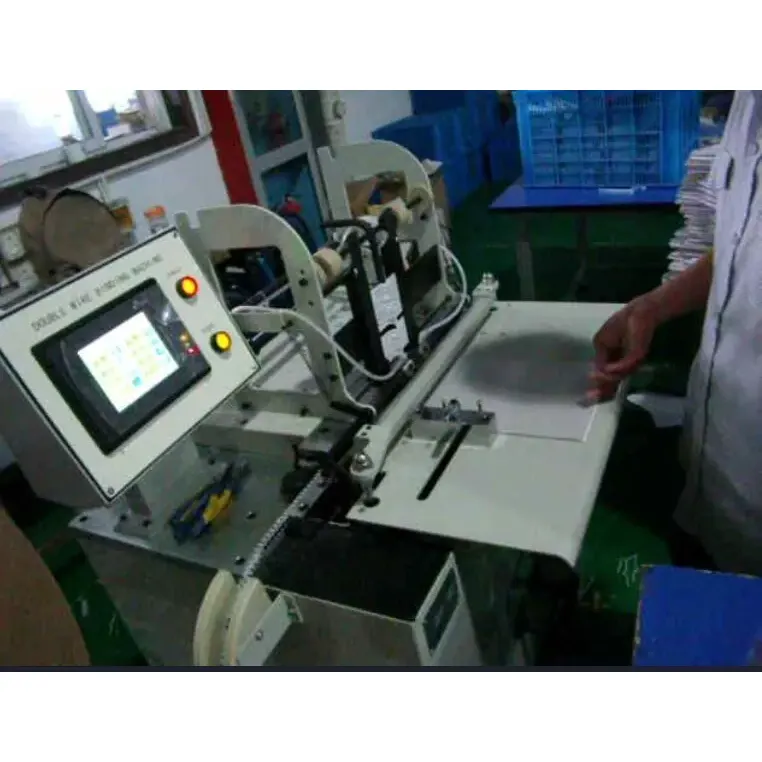

Double O Binding Machine for Exercise Book is controlled by PLC which is easy to set and adjust. It’s easy and fast to change different molds to bind vsrious loops. Calender hanger is an optional choice for customer. The max speed of Double O Binding Machine for Exercise Book is 1500books/hour. The max binding range is 520mm for wall calendar. The binding size from 1/4 to 3/4 and max binding thickness is 16.6mm.
Specification:
|
Size |
Pitch |
Hole(mm) |
Wire dia(mm) |
Thickness (mm) |
Pages |
|
1/4 |
3:1 |
4.0*4.0 |
6.4 |
4.9 |
45 |
|
5/16 |
3:1 |
4.0*4.0 |
7.9 |
6.3 |
60 |
|
3/8 |
3:1 |
4.0*4.0 |
9.5 |
7.9 |
70 |
|
7/16 |
3:1 |
4.5*4.5 |
11.1 |
9.3 |
85 |
|
1/2 |
3:1 |
4.5*4.5 |
12.7 |
10.9 |
100 |
|
9/16 |
3:1 |
4.5*4.5 |
14.3 |
12.2 |
120 |
|
5/8 |
2:1 |
5.0*5.0 |
15.9 |
13.4 |
130 |
|
3/4 |
2:1 |
5.0*5.0 |
19.1 |
16.6 |
160 |
Technical data:
|
Speed |
1500volume/hour |
|
Air Pressure |
5-8Kgf |
|
Wire Diameter |
1/4"-3/4 |
|
Workbench Dimension |
680x310mm |
|
The max width of binding |
520mm |
|
Power |
1PH 220V 50/80Hz (other voltage on request) |
|
Main machine |
780x730x1150mm |
|
Feeding reel |
600x500x1320mm |
|
Net weight |
300Kg |
