Twin Ring Wire Comb Forming and Binding Machine

Twin Ring Wire Comb Forming and Binding Machine is applicable to nylon-coated wire, tinned wire and galvanized wire forming and binding for notebook, exercise book and calendar.

Send Inquiry

Product Description

Twin Ring Wire Comb Forming and Binding Machine is applicable to nylon-coated wire, tinned wire and galvanized wire. High quality products, and no damage in coated layer of the wire .

Different size of coils in the same pitch can be produced by replacing the forming mold Accurate pitch,standard shape Reliable operation,high versatility.

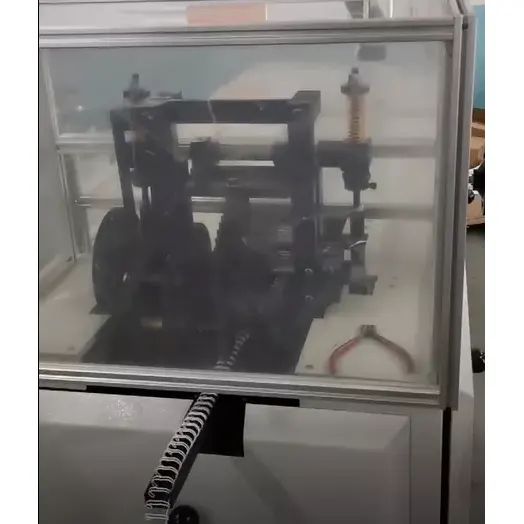

The wire is drawn from a barrel or spool and any twist is taken out by rectifying rollers, further rollers straighten out the wire and feed it into the first forming station. A winding cross and a star wheel perform the wire into a zig-zag-line. Through a conveyor channel the zig-zag wire goes into the second forming station where the binding is pre-rounded and the shape completed. The lengthened transport channel allows a turning of the binding to 180°.This is important for the individual winding up of the binding elements. At the run-out, a counter reads out the produced number of loops.

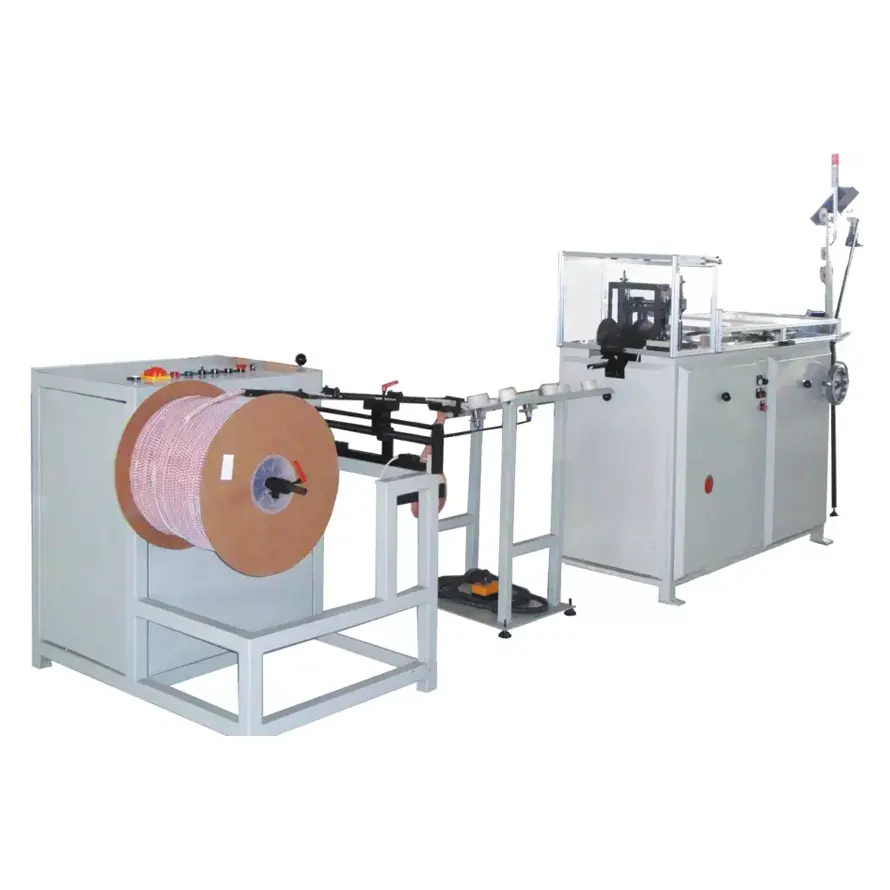

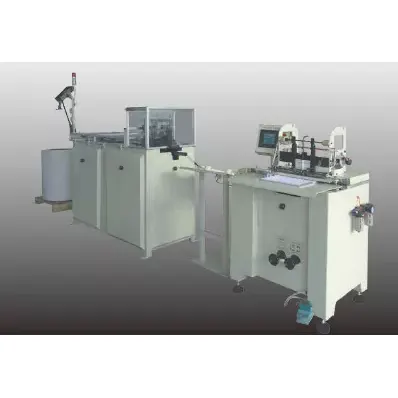

Having the same pitch and using additional parts, Twin Ring Wire Comb Forming Machine can be adjusted to different diameters in the same range.It is also possible to spool the pre-formed wire binding onto special manufactured spools. In this case the Winding Machine is directly connected to the Forming Machine. An endless paper strip is also simultaneously wound on in order to separate the wire bindings.

Specification:

Size

Pitch

Back Ground

(mm)

Tinned Wire

(mm)

Wire Dia

(mm)

Binding Thickness

(mm)

BindingPage

(page)

1/4

3:1

0.70

0.65

6.4



4.9

45

5/16

3:1

0.80



0.70



7.9

6.3

60

3/8

3:1

0.80



0.75

9.5

7.9

70

7/16

3:1

0.90



0.80

11.1



9.3



85

1/2

3:1

0.90



0.85

12.7

10.9

100

9/16

2:1

1.00



0.90



14.3

12.2



120

5/8

2:1

1.10



1.00

15.9

3.4

130

3/4

2:1

1.20



1.10

19.1

16.6

160

7/8

2:1

1.20



1.20



22.2

19.7

190



1



2:1

1.25

1.20

25.4

22.9

225

11/4

2:1

1.50



1.45

31.8

27.8

270

Technical Data:

Speed



350-550Loops/min

Total Power

Forming machine

0.75Kw

Total Power

Spooling machine

0.37Kw

Total Power

Paper cutting machine

0.25Kw

Dimension

Forming machine

 2400*650x1700mm

Dimension

Spooling machine

1300*1000*1200mm

Dimension

Paper cutting machine

 600x500*1400mm
